It is a machine that automatically ties and bundling items together using a strapping band. This method of bundling usually used for more durable and heavy application. Common suitable application are bundling products on top of a pallet, woods, steel, concrete blocks, lumber, pipes, etc.
.jpg)

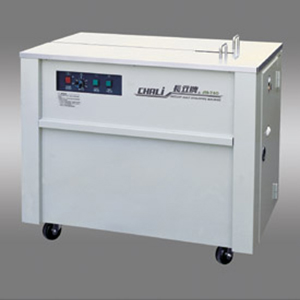

JN-740
.jpg)

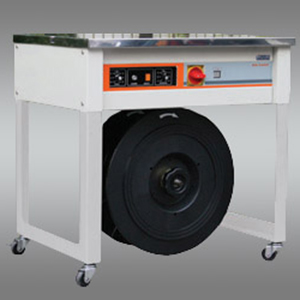

NS-3ADFD
.jpg)

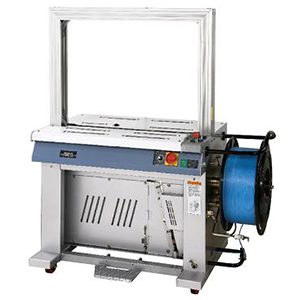

M-60AX
Specification:
| Model | JN-740 |
| Voltage | 220 VAC; 50Hz; 1Ø |
| Strap cycle speed | 1.5 sec / strap |
| Tension strength | 15 ~ 60 KG |
| Table Height | 735 mm |
| Strap width | 6 ~ 15 mm |
| Sealing method | Heat sealed |
| Driving motor | 220VAC 200W |
| Machine Dimension | 890mm W x 570mm D x 730mm H |
| Machine Weight | 95 KG |
| Gross Weight | 120 KG in carton packing |
.jpg)
This machine is suitable for tying the following objects such as: the publications of newspapers or magazines or any kinds of books, and the paper boards or the packing of clothing and foods, and the chemical products or the postal articles, and all the wood wares or other items which need to be tied and fixed well on the surface during the packing.
Specification:
| Model | NS-3ADFD |
| Voltage | 220 VAC; 50Hz; 1Ø |
| Strap cycle speed | 2 sec / strap |
| Tension strength | 1.5 ~ 60 KG |
| Table Height | 755 mm |
| Strap width | 5 ~ 15.5 mm |
| Sealing method | Heat sealed |
| Driving motor | 220VAC 200W |
| Machine Dimension | 750mm W x 550mm D x 755mm H |
| Machine Weight | 83 KG |
.jpg)
Specification:
| Model | NS-3ADFD |
| Voltage | 220 VAC; 50Hz; 1Ø |
| Strap cycle speed | 30-32 cycles/min |
| Arch Size | 800mm x 600mm (Aluminium Arch) 750mm x 575mm (Metal Cover Arch) |
| Dimension | 1240 mm W x 580 mm D x 1475 mm H |
| Table Height | 805 mm |
| Strap width | 6 - 15mm (change kits and adjustments) |
| Sealing method | Heat sealing |
| Net weight | 190 KG |
.jpg)
