Coding Machine

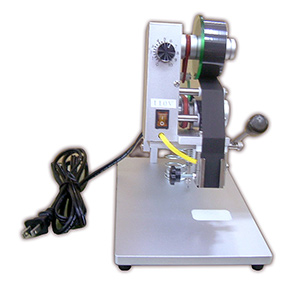

Semi Auto Coding Machine

DH-8DMSJ

Print Length : 25mm or 35mm
Character Size : 2mm, 3mm or 4mm

Carton Coding Machine

KC-120

■ Features:

• Coding date, lot., size, mark.. etc. after carton sealing machine.
• Sponge ink roller & base-lock rubber types are used and easy to be changed. No need of power.

■ Carton size:

• Height: 60m/m over
• Length: 170m/m over
• Base-Lock Rubber Types- available in 3m/m ~ 13m/m. Special Rubber Types can be order made.

■ Printing position: Top, Bottom & side

■ Model:

• S type: KC-80/25
• M type: KC-120/25    KC-120/50
               KC-120/75

Model	Diameter of Cylinder	Text Height	Max Length of Text	For Cartons Length
KC-80/25	80m/mΦ	25m/m	180m/m	170-360m/m
KC-120/25	120m/mΦ	25m/m	240m/m	200-520m/m
KC-120/50	120m/mΦ	50m/m	240m/m	200-520m/m
KC-120/75	120m/mΦ	75m/m	240m/m	200-520m/m
