For individual bottle body shrink wrap or cap shrink wrap, we offer automatic applicating machine, heat shrink tunnel and fully integrated system.
Specification:

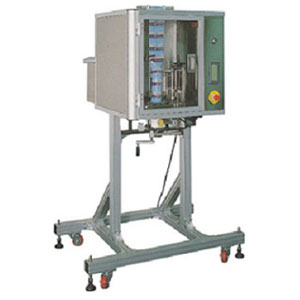

Model | LE-100 |
Power | 220V 3Ø |
Motor | 15W x 2 ; 1/2HP x 1 |
Lay Flat Width | 40-150mm |
Length | 30-150mm |
Thickness | 0.035-0.07mm |
Applied Material | OPS, PET, PVC |
Speed (max) | 100 BPM |
Applied Products | Circular (25mm-100mm ø) Square (Diagonal <100mm) |
Specification:

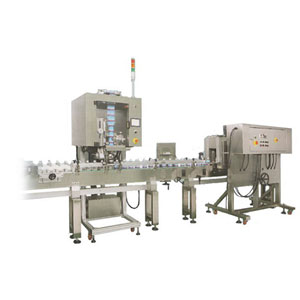

Model | LC-100 |
Power | 220V 3Ø |
Motor | 25W x 1; 60W x 1; 90W x 1 |
Lay Flat Width | 40-160mm |
Length | 30-200mm |
Thickness | 0.035-0.07mm |
Applied Material | OPS, PET, PVC |
Speed (max) | 180 BPM |
Applied Products | Circular (25mm-100mm ø) Square (Diagonal <100mm) |
Machine Dimension | 1330mm x 800mm x 1650mm |
Specification:

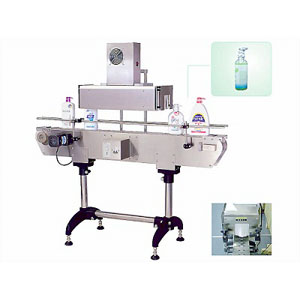

Model | PM-BS4 |
Voltage | 220V 1Ø |
Power | 3.5 KW |
Conveyor Speed | 5~30 M/min. |
Max. Bottle diameter | 100 mm |
Bottle Height | 50 ~ 400mm (Adjustable) |
Machine Dimension | 1500mm x 460mm x 1435mm |
Specification:

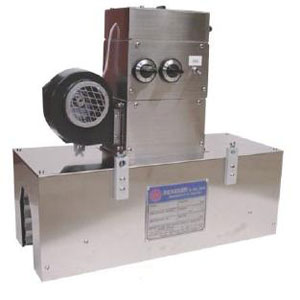

Model | GS-75 |
Voltage | 220V 1Ø |
Heater | 5 KW |
Motor | 4 W |
Temp. in tunnel | 250 °C |
Applied material | PVC / PET / OPS / PLA |
Machine Dimension | 580mm x 195mm x 475mm |
Tunnel Dimension | 580mm x 75mm x 100 mm |
Tunnel Heigh adjustment | Manual |
Specification:

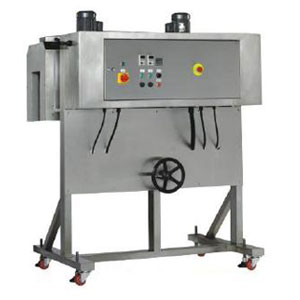

Model | ES-130 |
Voltage | 380V 3Ø |
Heater | 9 KW |
Motor | AC 1/4 x 2 |
Temp. in tunnel | 200 °C |
Applied material | PVC / PET / OPS / PLA |
Machine Dimension | 900mm x 800mm x 1480mm |
Tunnel Dimension | 900mm x 130mm x 190 mm |
Tunnel Heigh adjustment | Manual Auto (Optional) |
