Portable Strapping Tools

Battery powered automatic PET & PP combination strapping tool

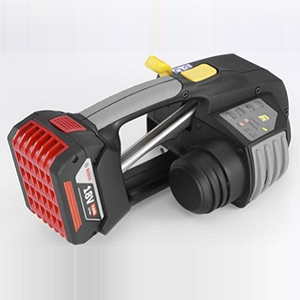

ZP93 & ZP97

Latest technology

• Brushless motor-ZAPAK patented single motor design provides extremely long service life.
• Bosch Li-Ion battery- 18V 4.0Ah rechargeable battery with smart Charge Level Indicator (CLI)
• Bosch 30 minutes charger

Powerful & Speedy

• Max. tension 400 KGS ( 4000N) - ZP97 heavy duty model.
• Max. tension 250 KGS ( 2500N) - ZP93 standard duty model.
• Patented new strap grippers design contributes to high tension ability and strap quality tolerance.
• Single-handed operation performs automatic tensioning, friction welding and cutting efficiently.

Smart & Easy

• Pre-programmed touch panel with digital signal to suit different operation needs instinctively.
• Lightest model in same class of tools approx. 3.4kg (7.5lbs incl. battery) relieves operation fatigue.
• Special tool retreating device ensures smooth and easy removal of tool.
• Unique rear-end roller design prevents scratches or worn out damages on strapping objects.
• User self-adjustable strap widths guiders and self-changeable wearing parts.
• Optional hanger reduces operation fatigue.
• ZP93 Soft mode tension available for slow and low tension on strapping light or fragile objects.

Safety

• Single-handed operation conforms to CE safety directive and meets RoHS requirements.
• Li-Ion battery complies with UN38.3 safety requirements.

Specification:

Model	ZP 93	ZP 97
Fits Poly-strap	PP / PET	PP / PET
Strap Width(mm)	9~16	16&19
Strap Width(inch)	3/8~5/8	5/8&3/4
Strap Thickness(mm)	0.55~1.27	0.75~1.27 0.65~1.27
Strap Thickness(inch)	0.022~0.05	0.029~0.05 0.026~0.05
Tension range	10~250 kgs (22~550 lbs)	40~400 kgs ( 88~880 lbs)
Sealing efficiency	85 ± 5%	85 ± 5%

Electric Operated

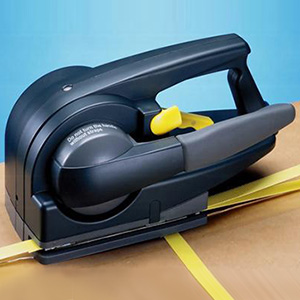

ZP20

• Reliable manual tensioning, Max 100kgs for light duty strapping job.
• Automatic friction-weld sealing and cutting, no metal seals required.
• Lightweight and compact size.
• Easy "one-step" straps inserting.

Specification:

Model	ZP 20
Voltage (AC)	230V ±10; 1Ø; 50Hz
Strap band material	PP
Width	9-16mm
Thickness	0.55 - 1.0mm
Tension range	20 - 100 kg
Sealing efficiency	80 ± 5%
Machine dimension	250mm x 106mm x 140mm
Machine weight	2.73 KG

Light duty applications

ZP24

• Extreme long service life.
• Adjustable tension from 15kg up to 80kg (PP) and 20kg up to 120kg (PET)
• The most economic combination tool for light duty strapping
• Automatic tension, automatic friction welding and cutting, no metal seals required.
• Easy "one-step" straps inserting
• User self-adjustable front & rear strap guiders to assure perfect strap alignment.

Specification:

Model	ZP 24
Voltage	Battery (DC)
Strap band material	PP / PET
Width	9-16mm (PP) 9 - 13mm (PET)
Thickness	0.55 - 0.8mm (PP) 0.45 - 0.6mm (PET)
Tension range	15 - 80 kg (PP) 20 - 120 kg (PET)
Sealing efficiency	90 ± 5%

Normal duty applications

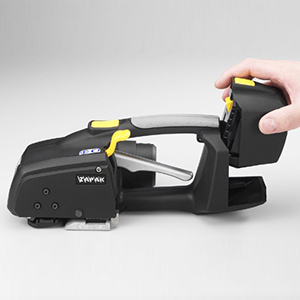

ZP92

• Adjustable tension, up to 260 kgs for normal duty strapping jobs.
• Single-handed operation
• Brushless motor
• 18V Li-Ion Battery
• pre-programmed Control Panel
• Operation Lever for easy strap feeding & easy tool removal

Specification:

Model	ZP 92
Voltage	Battery (DC)
Strap band material	PP / PET
Width	9-16mm (PP/PET)
Thickness	0.55 - 1.35mm (PP/PET)
Tension range	10 - 260 kg (PP/PET)
Sealing efficiency	85 ± 5%
