Shrink Sealers

In order the products to be shrink-wrapped with shrink wrap bag, all side of the shrink wrap bag need to be sealed using heat sealer. For big quantity of products, faster and consistent sealing, we offer semi-automatic and fully automatic heat sealer.

thumbnail Semi Auto L-Sealer: Ouya AP-1622A
thumbnail Auto L-Sealer: Benison LSA-504C (ASTER)
thumbnail Auto Easy Side Sealer: USE-004 (Benison Side Sealer)
thumbnail Fully Automatic L Type Sealing Machine Ouya LA-6000CS
thumbnail Fully Automatic Vertical L Type Sealing Machine Ouya LA-8000VM
thumbnail Fully Automatic Economical L Type Sealing Machine Ouya LA-460E

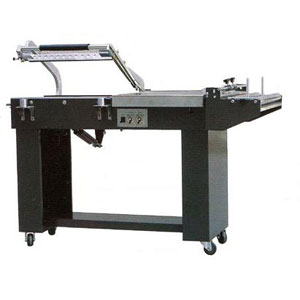

Semi Auto L-Sealer

Ouya AP-1622A

Sealing made easy with AP-1622A. With power-belted discharge conveyor and dual magnetic clamping system.

Specification:

Model AP-1622A AP-3040A
Voltage 220 VAC 1ø 220 VAC 1ø
Machine Dimension 1600 x 775 x 1000 mm 2500 x 1125 x 1000 mm
Sealing bar 550 x 400 mm 1000 x 750 mm
Machine Weight 120 kg 200 kg
Pneumatic - -
thumbnail

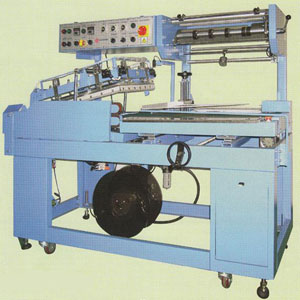

Auto L-Sealer

Benison LSA-504C (ASTER)

This easy to use automatic L-Sealer boast capacity of 25 packages per minute. Run with PLC, makes it a solid piece of work with a longer lasting working hours. With selectable horizontal or vertical sensor, sealing made easy. Change of plastic is also easier with this machine for it is designed for operator friendly.

Specification:

Model LSA-504C (ASTER)
Package Size 500 x 400 x 120 mm
Capacity per min 25
Voltage 230 VAC 1ø
Machine Dimension 1750 x 885 x 1370 mm
Sealing bar length 550 x 450 mm
Motor AC 25 W x 1
AC 40 W x 1
AC 60 W x 2
AC 15 W x 1
Air Pressure Required 80 psi
thumbnail

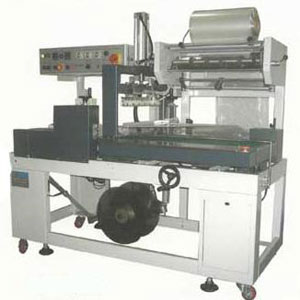

Auto Easy Side Sealer

USE-004 (Benison Side Sealer)

With temperature constant control design, the temperature of seal blade can be easily adjusted. Simple operation to adjust according to the packaging height. With simple mechanism design makes it easy for operator to maintain and clean.

Specification:

Model USE-004
Package Size 350 x ∞ x 80 mm
Capacity / min (depends on the width); 40 for 100 mm
Voltage 240 VAC 1ø
Machine Dimension 1776 x 906 x 1332 mm
Power (Heater) 1 KW
Power (Motor) 60 W x 2
40 W x 1
25 W x 1
15 W x 1
Air Pressure Required 80 psi
thumbnail

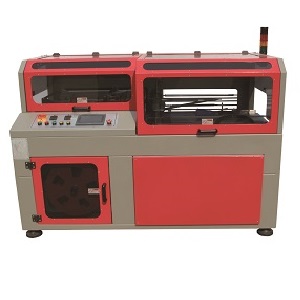

Fully Automatic L Type Sealing Machine Ouya LA-6000CS

  • Motorized center seal system as standard. (Only for CS model)
  • Piece counter, batch production sealing possible.
  • Measurement of the pack length.
  • Real-time output.
  • Control of irregular packs.
  • Reduced power consumption.
  • Packing film requirement: Polyolefin, polyethylene micro perforated film, thickness from 10 to 50 micron.
  • Compliance with CE regulations.

Options:

  • Closing belt for small product or irregular products.
  • Printing mark registration device for printed film.
  • Additional infeed and outfeed belt conveyor.

Specification:

Model LA-6000CS LA-6000 LA-5000KB
Power Supply & Consumption 220V/1ph/
50HZ/3200W		 220V/1ph/
50HZ/3000W		 220V/1ph/
50HZ/2800W
Compressed Air Preasure
& Volume		 6 Bar, 90L/min 6 Bar, 90L/min 6 Bar, 60L/min
Max. Sealing Size 610 x 480 mm 610 x 480 mm 480 x 420 mm
Max. Pack Height 200 mm 120 mm 100 mm
Max. Conveyor Speed 30 m/min 30 m/min 30 m/min
Max. Packing Speed 45 ppm 45 ppm 45 ppm
Central Seal Function Yes No No
Machine Size (LxWxH) 2040 x 1550 x 1650 mm 2040 x 1550 x 1650 mm 1300 x 1450 x 1650 mm
Packed Machine Size (LxWxH) 2160 x 1730 x 1620 mm 2160 x 1730 x 1620 mm 1420 x 1630 x 1620 mm
Machine Weight (Netto / Gross) 610 / 780 kg 580 / 750 kg 390 / 500 kg
Closing conveyor No No Yes

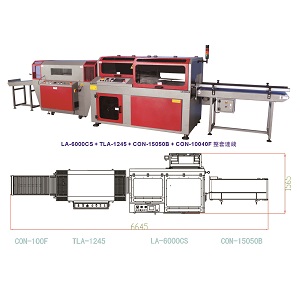

Fully Automatic L Type Sealing Machine LA-6000

thumbnail

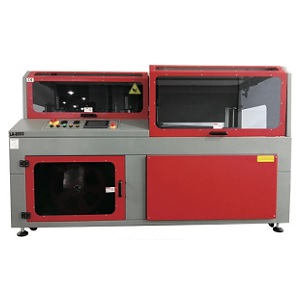

Fully Automatic Vertical L Type Sealing Machine Ouya LA-8000VM

Specification:

Model LA-8000VMACS LA-8000VMB
Power Supply & Consumption 220C/1ph/50Hz/4600W 220C/1ph/50Hz/3400W
Compressed Air Preasure & Volume 6 Bar, 10L/min 6 Bar, 60L/min
Max. Sealing Size 860 x 670 mm 860 x 670 mm
Max. Pack Height 300 mm 200 mm
Sealing Rack Driven By Servo Motor Vertical Motion Cylinder Vertical Motion
Max. Conveyor Speed 30m/min 30m/min
Max. Packing Speed 35 ppm 35 ppm
Central Seal Function Yes No
Machine Size
L x W x H (mm)		 2473 x 1713 x 1670 2473 x 1713 x 1670
Packed Machine Size
L x W x H (mm)		 2580 x 1840 x 1570 2580 x 1840 x 1570
Machine Weight (Netto/Gross) 780 / 980 kg 750 / 950 kg
thumbnail

thumbnail

Fully Automatic Economical L Type Sealing Machine Ouya LA-460EKB

  • Anti-adhesive Teflon Coated Sealing Blade ensures neat and film seal without smoke pollution. Overheat protect functions extends the life span; hand clamping protect device avoids mistakenly damaging the product and also for the safety of the operator.
  • Choice of vertical or horizontal-type photocell sensor to suit various product sizes and thickness.
  • Can automatically adjust the feeding length and reel the waste film.
  • Selected electrical components from reliable international manufacturer.
  • Machine is equipped with safety transparent hood, complying with CE standard.

Options:

  • Closing belt for small product or irregular products.
  • Printing mark registration device for printed film.
  • 1.2m infeed conveyor.

Specification:

Model LA-460EKB
Max. Sealing Size 450 x 600 mm
Max. Packing Speed 25 ppm
Max. Packaging Size 460 x 320 x 100 mm
Power Supply & Consumption 220V/1ph, 1.5 kW
Machine Size (LxWxH) 1920 x 840 x 1540 mm
Packed Machine Size (LxWxH) 2060 x 1010 x 1770 mm
Compressed Air Preasure & Volume 6 bar, 20L/min
Machine Weight (Netto / Gross) 375 / 545 kg
Closing conveyor Yes
Fully Automatic L Type Sealing Machine LA-6000
