The mobile stretch wrapper automatically packs pallets of all shapes and sizes because it autonomously rotates around the product to be packed, following the profile of the wood platform or of the product itself.
It detects automatically the pallet height, with a photocell eye.
From the control panel, you can adjust the rise and descent rotation speeds, set the quantity of revs of stretch film to be positioned at the bottom or top of the pallet, automatically measure the height of the pallet or preset it manually.
Girotondo and Girokay is the only pallet wrapping robot manoeuvrable from the rear. This characteristic offers the best possible ergonomics: thanks to a patented system, the operator can carry out all operations from the back of the machine, thus considerably facilitating management, stretch film extraction and setting of controls.
The economical model for mobile stretch wrapper. The unique solution of wrapping loads of any weight, profile, dimension and shape. The unique solution that guarantees maximum protection to the load with halved packaging costs. The unique solution to wrapping in little space without any effort. The only system for wrapping with 60 cm around the pallet.
Specification:
Model No. | Max useful pallet height | Carriage type | H (mm) | L (mm) | W (mm) | Weight | Autonomy | Max diameter film coil | Core types of film coil |
WRAPMAN Sth 2.0 | 2.0 m | frictioned roller | 2119 | 1115 | 570 | 114 kg | 90 pallet | 180 mm | 50-76 mm |
WRAPMAN Sth 2.4 | 2.4 m | frictioned roller | 2481 | 1115 | 570 | 116 kg | 90 pallet | 180 mm | 50-76 mm |
WRAPMAN 2.0 | 2.0 m | power pre-stretch | 2119 | 1115 | 570 | 121 kg | 70 pallet | 145 mm | 50-76 mm |
WRAPMAN 2.4 | 2.4 m | power pre-stretch | 2481 | 1115 | 570 | 123 kg | 70 pallet | 145 mm | 50-76 mm |
WRAPMAN 2.8 | 2.8 m | power pre-stretch | 2900 | 1115 | 570 | 137 kg | 70 pallet | 145 mm | 50-76 mm |

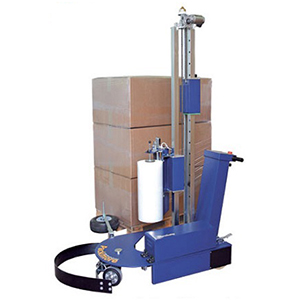

The Girokay AC Stc wrapper is an automatic robot for wrapping medium and large quantities of pallets. The machine is battery powered, and has a minimum throughput range of 80 pallet wraps per recharge. The battery charger is on board and to recharge, just plug into the mains socket. For extra range, you can buy a second optional battery unit. Fast interchange capability enables you to recharge one unit while the other is on board.
Adjustable parameters from panels:Specification:
Model No. | Max useful pallet height | H (mm) | L (mm) | W (mm) | W' (mm) | Weight | Autonomy | Pallet min dimensions | Max diameter film coil | Core types of film coil |
GIROKAY AC Stc 2.0 | 2.0 m | 2272 | 1730 | 690 | 1320 | 217 kg | 100 pallet | 75x75 cm | 250 mm | 50-76 mm |
GIROKAY AC Stc 2.4 | 2.4 m | 2634 | 1730 | 690 | 1320 | 219 kg | 100 pallet | 75x75 cm | 250 mm | 50-76 mm |
The Girotondo Ac wrapper lengthens exactly double the length of the original stretch film in the reel (100 % elongation percentage). This pre-elongation occurs inside the device.
With this machine, you can also adjust, with a knob, the outfed tension of stretch film so that very light or heavier pallets can be wrapped.
The power pre-stretch carriage has a rapid loading system to speed up reel changes. Stretch film reels with an external diameter of 250 mm and with an internal core of 2, or 3 inches can be used.
This model has as many as 8 different wrapping programs. The machine is supplied standard with the semi-automatic wrapping program for pallets with an irregular perimeter.
Specification:
Model No. | Max useful pallet height | H (mm) | L (mm) | W (mm) | W' (mm) | Weight | Autonomy | Pallet min dimensions | Max diameter film coil | Core types of film coil |
GIROTONDO AC 2.0 | 2.0 m | 2272 | 1680 | 690 | 1320 | 225 kg | 80 pallet | 75x75 cm | 250 mm | 50-76 mm |
GIROTONDO AC 2.4 | 2.4 m | 2634 | 1680 | 690 | 1320 | 227 kg | 80 pallet | 75x75 cm | 250 mm | 50-76 mm |
GIROTONDO AC 2.8 | 2.8 m | 3053 | 1680 | 690 | 1320 | 230 kg | 80 pallet | 75x75 cm | 250 mm | 50-76 mm |
