Skin Packaging

Similar to blister pack, but using heat and a vacuum to form the thin transparent plastic which has glue layer over the product skin tight, instead of being pre-formed by eliminating moulding process for packaging cost saving.

MSP-1218

MSP-1824 (Optional floor stand)

SP-655 (Medium Skin Sealer)

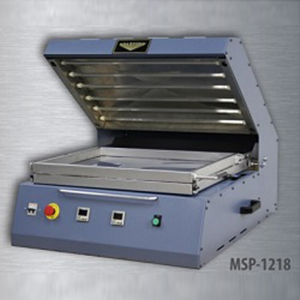

MSP-1218

Economical manual table top design
12” x 18” and 18” x 24”
vacuum box sizes offered
SP-1218 available in 115 and 220 volts single phase models.
MSP-1824 is 208 - 220 volts single phase

Specification:

Model	MSP-1218
Max card size:	12” x 18”
Heating system:	Quartz impulse
Vacuum system:	Turbine
Avg. cycle times:	30-60 seconds
Max. product height:	8”
Approximate size:	28”W x 31”D x 27”H
Approximate wt:	60 LB.

For Local Indonesia Only:
Consumables Skin Film

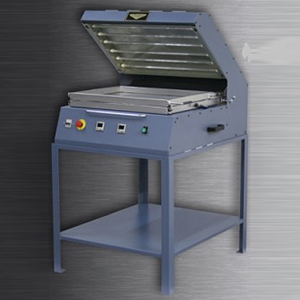

MSP-1824 (Optional floor stand)

Can be used for retail carded packaging or shipping containment
Energy saving Impulse Heating instant-on quartz heater system
All models use standard skin film roll widths

Specification:

Model	MSP-1824
Max card size:	18” x 24”
Heating system:	Quartz impulse
Vacuum system:	Turbine
Avg. cycle times:	30-60 seconds
Max. product height:	6”
Approximate size:	34”W x 37”D x 31”H
Approximate wt:	180 LB.

For Local Indonesia Only:
Consumables Skin Film

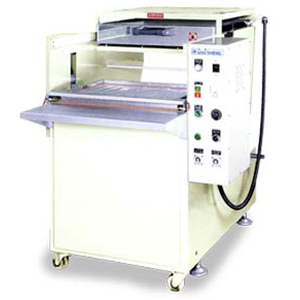

Medium Skin Sealer

SP-655

Directly pack articles by principal of heat pressing
Vacuum suction will form the plastic into the shape of articles
Big packing area. Thus, suitable for high volume production.

Specification:

Model	SP-655
Power	220V 1Ø
Width of film	660mm / 610mm
Packing area	560mm x 400mm
Vacuum pump	2HP
Heater power	4.8 KW
Machine Dimension	1350mm x 1000mm x 1250mm

For Local Indonesia Only:
Consumables Skin Film

Skin Packaging

Products:

MSP-1218

MSP-1824 (Optional floor stand)

Medium Skin Sealer

SP-655

Need more help? Call us on +6221-6682594 or +6221-6622508
