Sleeve Wrapper

Sleeve wrapper package have open ends. We offer semi-automatic and fully automatic sleeve wrapper for faster workflow. Commonly used for cans, bottles, small products on top of a tray.

thumbnail Semi Auto Sleeve Wrap
thumbnail Auto Sleeve Wrap with Tray Packing
thumbnail Auto Sleeve Wrap without Tray
thumbnail Fully-Auto Sleeve Straight Feeding (without pusher) Sleeve Wrapper and Shrink Tunnel
thumbnail Hi-Speed Auto Overlapping Sleeve Wrap

Machine in factory

thumbnail Sleeve Wrapper

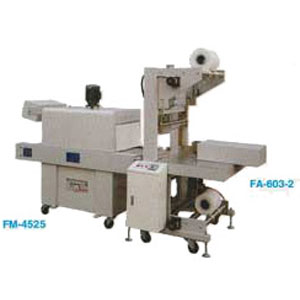

Semi Auto Sleeve Wrap

Semi Auto Sleeve Wrap

FA-603-2

  • Easy Mechanism & structure with multi-function
  • Available to fit with conveyor for auto feeding so as to match to the fully-auto production line
  • With multi-function for individual packing or collective packing.
  • Packing materials, PE, PVC, are available for excellent cutting & sealing.
  • Patented double line cutter with 100% cutting effect to make sealed place solid and uneasy to be to be torn.
  • As simple structure, the maintenance cost is greatly decreased.
  • Accroding to the different size, the adjustment of each part can be easily carried out. Easy to operate & suitable for small output production.

Specification:

Model FA-603-2
Packing Size (Min) 200mm L x 60mm W x 50mm H
Packing Size (Max) 400mm L x 350mm W x 280mm H
Packing Capacity 5-15 (time/min)
Power 220V / 380V ~ 0.6KW
Macine Dimension 1050mm L x 1150mm W x 1600mm H
Machine Weight 250KGS
Air Pressure 5 kgf/cm²
thumbnail

PE Shrinking Packing Machine

FM-4525

  • Assuring quality without being damage
  • Electricity saving to increase profit
  • Durable roller
  • DC motor driven conveyor

Specification:

Model FA-4525
Packing Size 400mm x 230mm
Packing Capacity 1 - 10 M/min
Power 220V / 380V
Electric Heating 8 KW
Macine Dimension 1500mm L x 650mm W x 1420mm H
thumbnail

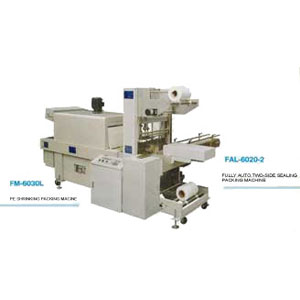

Auto Sleeve Wrap with Tray Packing

Auto Sleeve Wrap with Tray Packing

Fung Yuan (FAL-6020-2)

  • Suitable for packing material: PE, PVC, & OPP
  • Use for gift boxes, foods can, books, etc

Specification:

Model FAL-6020-2
Packing Size (min) 200mm L x 60mm W x 50mm H
Packing Size (max) 500mm L x 350mm W x 280mm H
Packing Capacity 5-15 (time / min)
Power 220V/380V x 0.6KW
Air Pressure 5 kgf/cm²
Machine Dimension 1450mm L x 1880mm W x 1615mm H
Machine Weight 300 KGS
thumbnail

PE Shrinking Packing Machine

FM-6030-L

  • Assuring quality without being damage
  • Electricity saving to increase profit
  • Durable roller
  • DC motor driven conveyor

Specification:

Model FM-6030-L
Packing Size 550mm x 280mm
Packing Capacity 1 - 15 M/min
Power 220V / 380V
Electric Heating 9 KW
Macine Dimension 1500mm L x 650mm W x 1420mm H
thumbnail

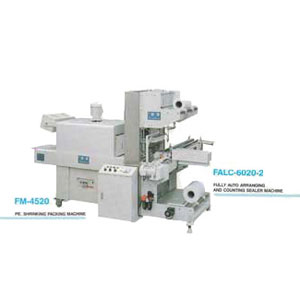

Auto Sleeve Wrap without Tray

Fully Auto Arrange and Count Sealer Machine

FALC-6020-2

  • Easy to adjust for different packing sizes
  • User friendly with automatic control
  • To pack collectively to save packing material and labor to save cost
  • Available to pack for square, flat, or round commodities, etc.
  • Suitable for PE, PVC, & OPP

Specification:

Model

FALC-6020-2
Packing Size (Min) 200mm L x 60mm W x 50mm H
Packing Size (Max) 400mm L x 350mm W x 180mm H
Packing Capacity 5-15 time/min
Power 220V/380V x 0.6KW
Air pressure 5 kgf/cm²
Machine Dimension 1300mm L x 1150mm W x 1600mm H
Machine Weight 300 KGS
thumbnail

PE Shrinking Packing Machine

FM-4520

  • Assuring quality without being damage
  • Electricity saving to increase profit
  • Durable roller
  • DC motor driven conveyor

Specification:

Model FA-4525
Packing Size 400mm x 230mm
Packing Capacity 1 - 10 M/min
Power 220V / 380V
Electric Heating 8 KW
Macine Dimension 1500mm L x 650mm W x 1400mm H
thumbnail

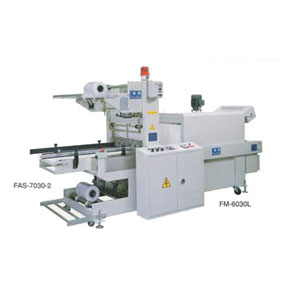

Fully-Auto Sleeve Straight Feeding (without pusher) Sleeve Wrapper and Shrink Tunnel

Automatic Two-Side Sealer / Straight In-feed

FAS-7030-2

  • Suitable for packing material: PE, PVC, & OPP
  • Use for gift boxes, foods can, books, etc

Specification:

Model FAL-7030-2
Packing Size (min) 200mm L x 60mm W x 50mm H
Packing Size (max) 500mm L x 350mm W x 280mm H
Packing Capacity 5-18 (time / min)
Power 220V/380V x 0.7KW
Air Pressure 5 kgf/cm²
Machine Dimension 1750mm L x 1140mm W x 1615mm H
Machine Weight 300 KGS
thumbnail

PE Shrinking Packing Machine

FM-6030-L

  • Assuring quality without being damage
  • Electricity saving to increase profit
  • Durable roller
  • DC motor driven conveyor

Specification:

Model FM-6030-L
Packing Size 550mm x 280mm
Packing Capacity 1 - 15 M/min
Power 220V / 380V
Electric Heating 9 KW
Macine Dimension 1500mm L x 650mm W x 1420mm H
thumbnail

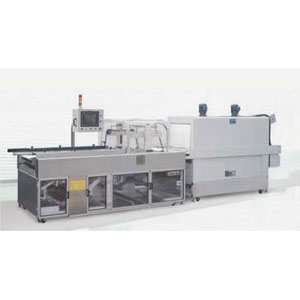

Hi-Speed Auto Overlapping Sleeve Wrap

Fung Yuan (FYT-501)

  • Hi-Speed
  • Nice packing
  • Simple maintenance
  • User friendly
  • Material : LDPE (both transparent or printed)
  • Single film packing is overlapped at the bottom of the products, there are no heat seals on the packages
  • Film is delivered with servo motor
  • Twin circulation fans to ensure even heat distribution inside shrink oven

Specification:

Model FYT-501
Packing Size (min) 300mm L x 200mm W x 140mm H
Packing Size (max) 420mm L x 400mm W x 330mm H
Machine Dimension 2800mm L x 1190mm W x 1450mm H
Power 220V 1Ø / 380V 3Ø ; 50/60 Hz
HP 6 HP
Air pressure 5~6kg/cfm² 100nl/min
Packing Capacity 20 ~ 30 packs/min
Machine Weight 750 KGS
