Foot Sealers
.jpg)
Impulse Foot Sealers
.jpg)
Constant Foot Sealers
.jpg)
Impulse Foot Sealers With Cutter
Impulse Foot Sealers
Constant Foot Sealers
Impulse Foot Sealers With Cutter

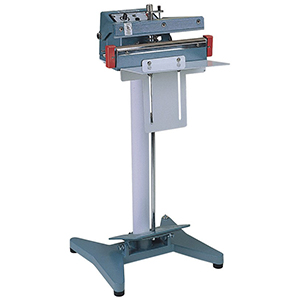

The MEC line of Impulse Foot Sealers are ideal for sealing large heavy bags. By having a foot control, the hands are free to feed the machine. It is like having an extra hand.
Units come complete with pedestal, stand, adjustable working table and adjustable foot control. 2mm, 5mm element wires are available. Optional Hot Stamp Imprinter.
The AIE line of heavy duty Impulse Foot Sealers (FI series), are specially manufactured to increase sealing production. Equipped with foot pedal activator, the user's hands are free to feed the machine.
Specification:
| Model | 300FI | 305FI | 455FI | 600FI |
| Seal Length | 300mm | 300mm | 450mm | 600mm |
| Seal thickness | 2 x 0.15 mm | 2 x 0.15 mm | 2 x 0.15 mm | 2 x 0.15 mm |
| Seal Width | 2 mm | 5 mm | 5 mm | 2 mm |
| Power | 450 W | 900 W | 1200 W | 800 W |
| Weight | 23 KG | 25KG | 27 KG | 26.5 KG |
.jpg)

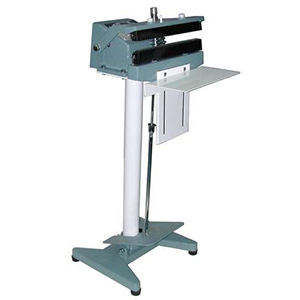

These special foot sealers are excellent for sealing polycello films, humidity-proof cellophane film, polyethylene film, aluminum foil coated bags and gusset bags. We offer mesh or straight-line texture of heater jaw. The straight-line texture is especially recommend for health care industry. "CFN" model equipped with Timing Light & Signal to notify operator that foot should be removed from pedal and sealing is complete. Each machine has new injection molded castings and electro static paint.
Hot stamp imprinter is optional. CFN type equipped with protection mask, it¡¦s more safty for user. Single heat type also could advise, can be used on the special medical bags and bubble bags.
Specification:
| Model | 300CFN | 400CFN | 600CFN |
| Seal Length | 300mm | 400mm | 600mm |
| Seal thickness | 2 x 0.25 mm | 2 x 0.25 mm | 2 x 0.25 mm |
| Seal Width | 10mm / 15mm | 10mm / 15mm | 10mm / 15mm |
| Power | 350W | 420W | 520W |
| Weight | 22KG | 23KG | 28KG |
.jpg)

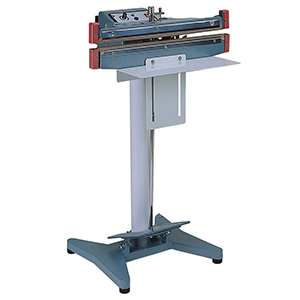

The Seal and Cut Impulse Foot Sealer (FDC models) is the first model designed to cut and seal in one operation. With the help of both a round wire and a flat 2 mm wire, these sealers give the operator a secured seal while eliminating the excess material above the seal. This Seal and Cut Impulse Sealer can extend its abilities with an additional accessory that allows the sealing head to be adjusted in different sealing angles. Please refer to the accessory section.
Specification:
| Model | 300FDC | 450FDC | 600FDC |
| Seal Length | 300mm | 450mm | 600mm |
| Seal thickness | 2 x 0.15 mm | 2 x 0.15 mm | 2 x 0.15 mm |
| Seal Width | 2 mm | 2 mm | 2 mm |
| Power | 1500 W | 1800 W | 2200 W |
| Weight | 23 KG | 25 KG | 27 KG |
.jpg)
