Product Overview
An industrial heat shrink tunnel use heat to shrink film around packages. This machine is designed to work with L bar sealer or sleeve wrapper bundler, but also stand alone for shrink banding applications, is compatible with a wide range of standard product sizes and offer optimum shrink performance while using minimum space.
- Thermal circulation system using heat integrated design, rapid temperature raise up
- In One heating zone, controlled by SSR and PID “OMRON” temperature controller, temperature tolerance +/- 1 Celsius
- Adopt metal heater
- Conveyor motor 400W, controlled by frequency inverter, speed adjustable 10-40 m/min
- CE certification
Key Features
- Adopt solid stainless steel heater, durable with low power consumption.
- Digital Temperature Controller.
- Conveyor speed adjustable.
- Live Roller Rod Conveyor adopts durable solid roll outer coated with silicone rubber to prevent dust and stand fire. (Option: Teflon Mesh Overlay Conveyor)
- Automatic Shutting-Off Function can automatically switch off the power when the tunnel temperature drops below 70°C, ensuring maximum life span and saving the waiting time.
- Selected electrical components from reliable manufacturer.
- Easy adjustment of tunnel height to suit products in various heights.
Technical Specifications
Machine Specification Ouya APT-1810
| Voltage | 380 VAC 3ø |
| Machine Dimension | 1655 x 830 x 1555 mm |
| Tunnel Dimension | 1000 x 450 x 250 mm |
| Power | 10 KW |
| Packed Machine Size (LxWxH) | 1650 x 880 x 1070 mm |
| Machine Weight (NW/GW) | 250 / 320 Kg |

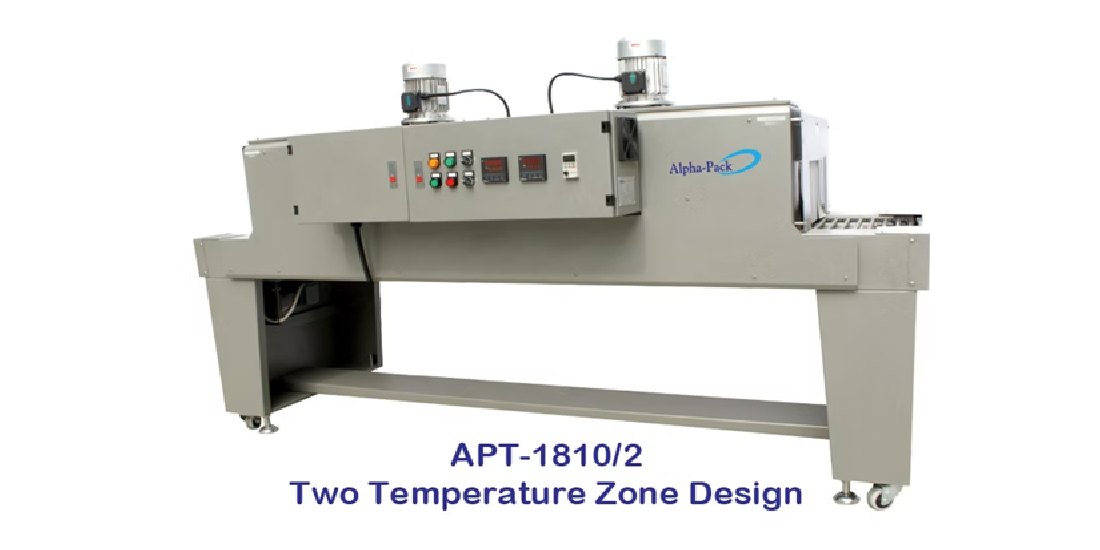

Machine Specification Ouya APT-1810/2
| Voltage | 380 VAC 3ø |
| Machine Dimension | 2455 x 1020 x 1530 mm |
| Tunnel Dimension | 1800 x 450 x 250 mm |
| Power | 20 KW |
| Packed Machine Size (LxWxH) | 2590 x 1150 x 1770 mm |
| Machine Weight (NW/GW) | 450 / 550 Kg |
