Product Overview

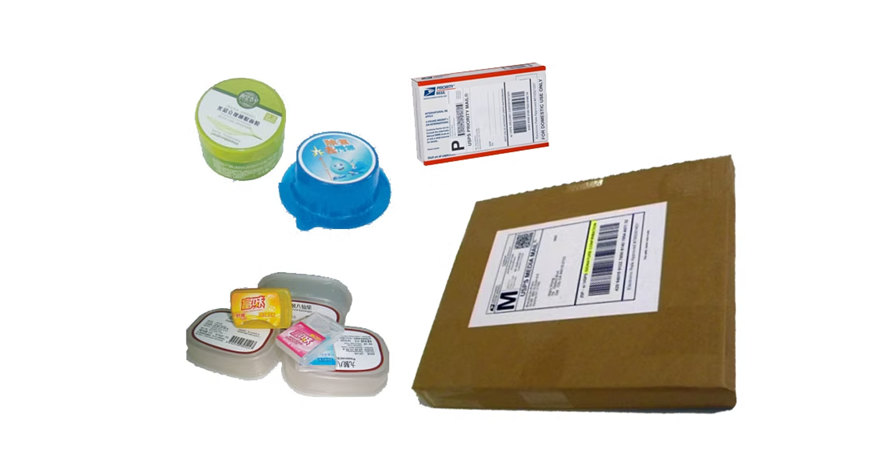

This machine is designed for top labeling on flat products.
- Machine main construction by Stainless Steel #304.
- PLC combined with touch screen control system.
- High accuracy labeling, ±1 mm tolerance.
- Servo motor driven labeling head, labeling speed is automatically synchronized with conveyor speed to ensure high speed and quality labeling.
Option
- Hot printer
- Transparent label sensor
- Customer made width product conveyor
Technical Specifications
Machine Specification
| Label Height/ Width | A: 10-110mm; C: 10-170mm; D: 10-220mm |
| Label Length | 10-250mm |
| Product Dia./Width | 15-300mm |
| Conveyor Width | Max. 300mm |
| Labeling Speed | 12-35meter per min |
| Reel Inner/ Outer Dia. | Within 76mm/ 360mm |
| Machine Dimension (mm) | L1450 x W700 x H1550 |
