Product Overview
Features :
1. Thermal circulation system using heat integrated design, rapid temperature raise up.
2. SSR and PID temperature control, temperature tolerance +- 1’C.
3. Adopt long metal heater, durable, and stable.
4. Heater drawer design, for easy inspection and heater connection changing.
5. Conveyor speed controlled by frequency inverter, speed adjustable 10-40m/min.
6. Standard live roller design.
7. Adjustable air flow vents control the air flow volume by frequency inverter.
8. Both side lateral air flow direction is adjustable.
9. Insulation layer between heating zone and outer skin of about 100 mm to minimize heat loss.
Options :
1. Stainless steel machine construction.
2. Openable tunnel cover.
3. Cooling at the tunnel exit.
4. Dead roller mechanism.
Technical Specifications
Machine Specification TLA-1245
| Tunnel Size (LxWxH) | 1200mm x 450mm x 300mm |
| Machine Size (LxWxH) | 1840mm x 1080mm x 1250mm |
| Packed Machine Size (LxWxH) | 1920mm x 1180mm x 1400mm |
| Power | 9000W |
| Voltage | 380-400V or 220V / 3ph, 50 Hz |
| Machine Weight (Netto / Gross) | 470 / 570 kg |

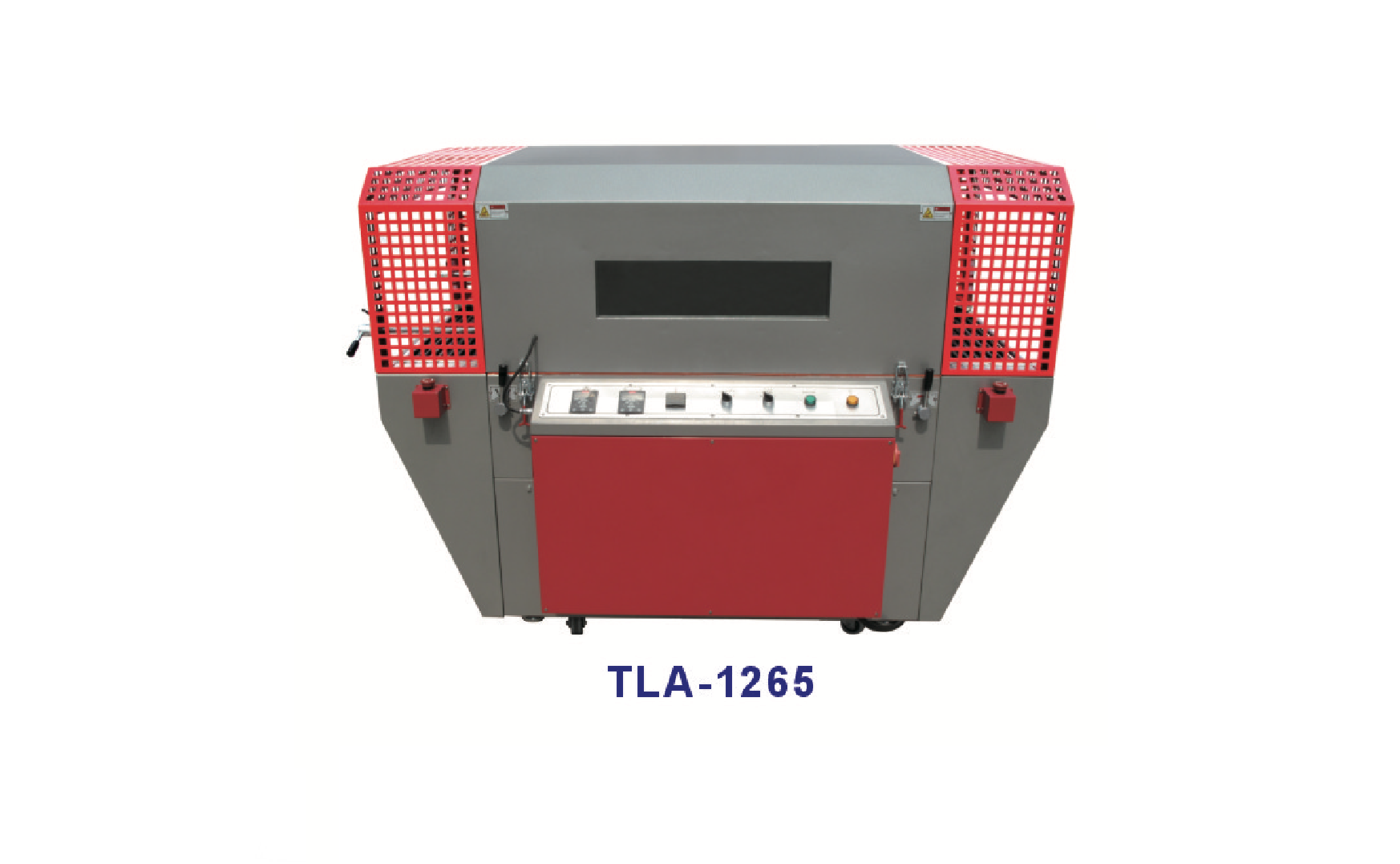

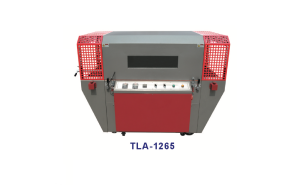

Machine Specification TLA-1265
| Tunnel Size (LxWxH) | 1200mm x 650mm x 400mm |
| Machine Size (LxWxH) | 1840mm x 1280mm x 1350mm |
| Packed Machine Size (LxWxH) | 1920mm x 1380mm x 1500mm |
| Power | 12000W |
| Voltage | 380-400V or 220V / 3ph, 50 Hz |
| Machine Weight (Netto / Gross) | 500 / 640 kg |

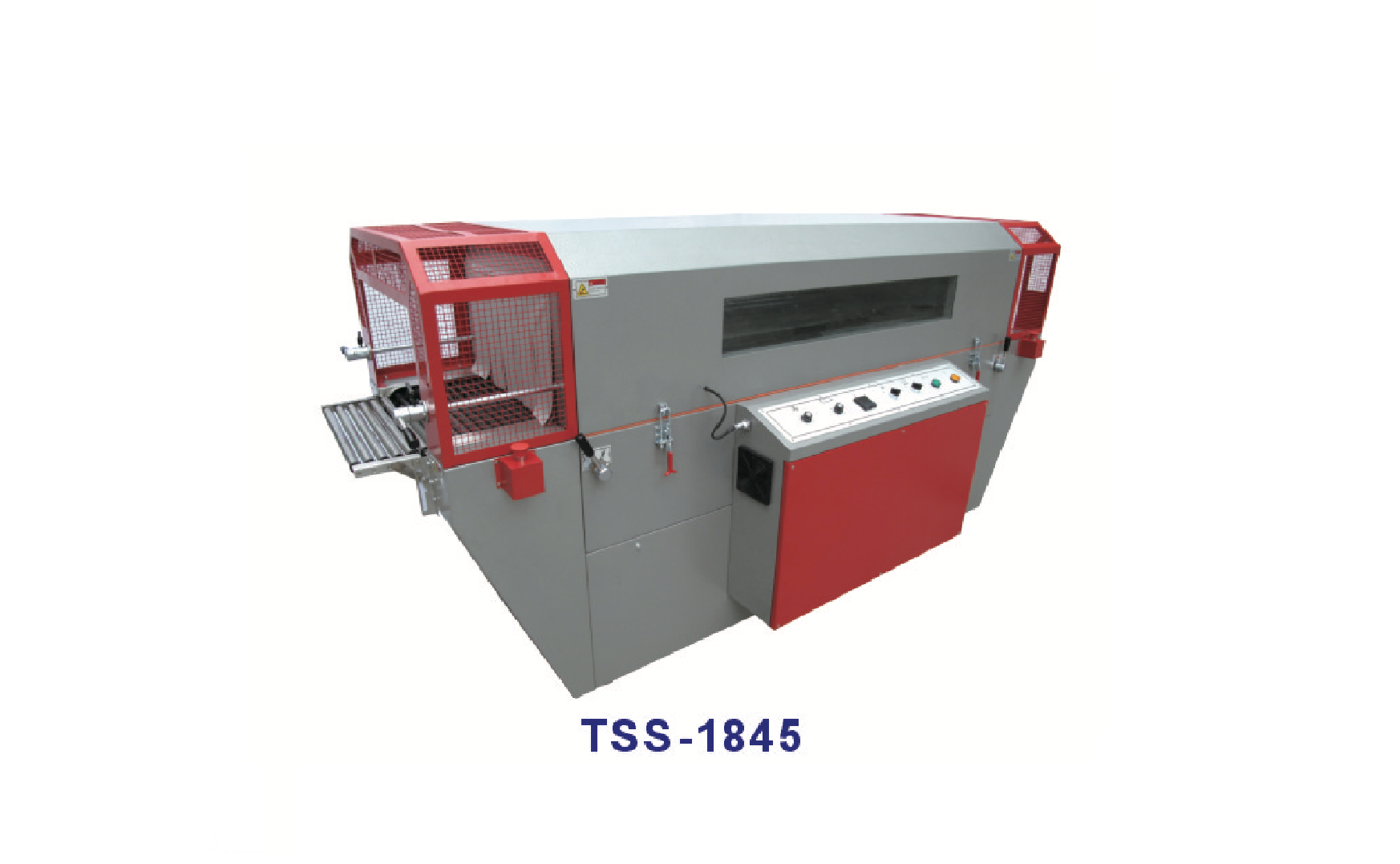

Machine Specification TSS-1845
| Tunnel Size (LxWxH) | 1800mm x 450mm x 300mm |
| Machine Size (LxWxH) | 2440mm x 1080mm x 1250mm |
| Packed Machine Size (LxWxH) | 2520mm x 1180mm x 1400mm |
| Power | 18000W |
| Voltage | 380-400V or 220V / 3ph, 50 Hz |
| Machine Weight (Netto / Gross) | 580 / 720 kg |
Machine Specification TSS-1865
| Tunnel Size (LxWxH) | 1800mm x 650mm x 400mm |
| Machine Size (LxWxH) | 2440mm x 1280mm x 1350mm |
| Packed Machine Size (LxWxH) | 2520mm x 1380mm x 1500mm |
| Power | 24000W |
| Voltage | 380-400V or 220V / 3ph, 50 Hz |
| Machine Weight (Netto / Gross) | 690 / 900 kg |
