Product Overview
Features:
1. Advanced PLC control system combined with 5.7” color touch screen control panel. Can easily set and change packing parameters, display production data and self diagnostic machine error can be viewed directly from the screen.
2. Servo driving system, film speed automatically synchronized with conveyor speed.
3. End seal jaw speed adjustable by a hand wheel when bag length change.
4. All parts are built for easy maintenance and cleaning.
5. Comply with CE standard.
6. On all machines is possible to install: Photocell for printed film, Printer for date, automatic feeder, etc
Technical Specifications
Machine Specification AHP-400S
| Wrapping Speed | Up to 100 pcs/min |
| Max. Film Reel Width | 400 mm |
| External Film Reel Dia. | 350 mm |
| Max. Package Height | 70 mm |
| Max. Package Width | 200 mm |
| Package Length | 60-452 mm |
| Compressed Air Pressure | 6 Bar |
| Supply Voltage | 220-240V 1ph |
| Power Consumption | 2.5kw |

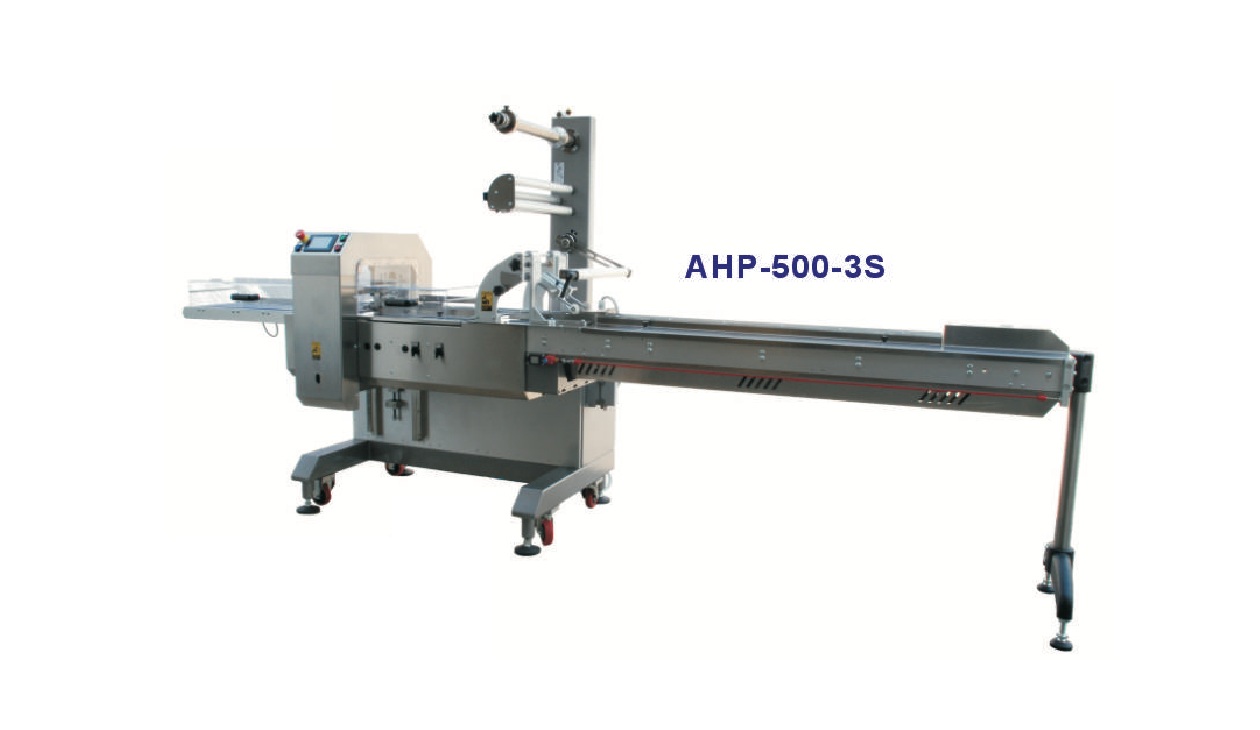

Machine Specification AHP-500-3S
| Wrapping Speed | Up to 250 pcs/min |
| Max. Film Reel Width | 500 mm |
| External Film Reel Dia. | 350 mm |
| Max. Package Height | 100 mm |
| Max. Package Width | 200 mm |
| Package Length | 76-564 mm |
| Compressed Air Pressure | 6 Bar |
| Supply Voltage | 380-400V 3ph |
| Power Consumption | 3kw |
