Product Overview

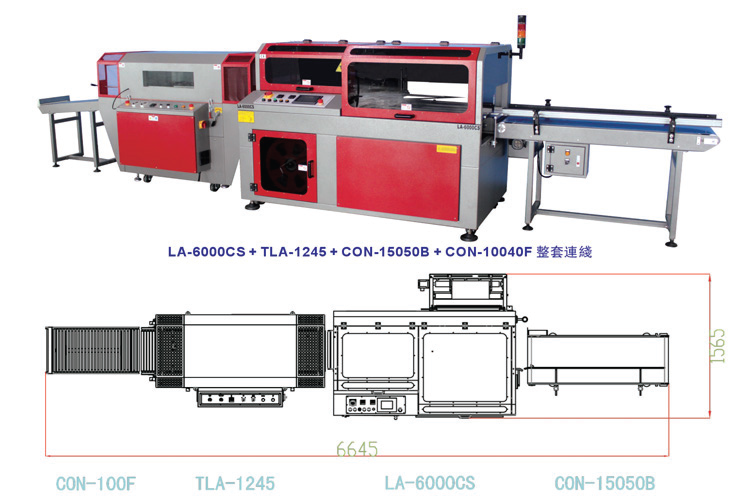

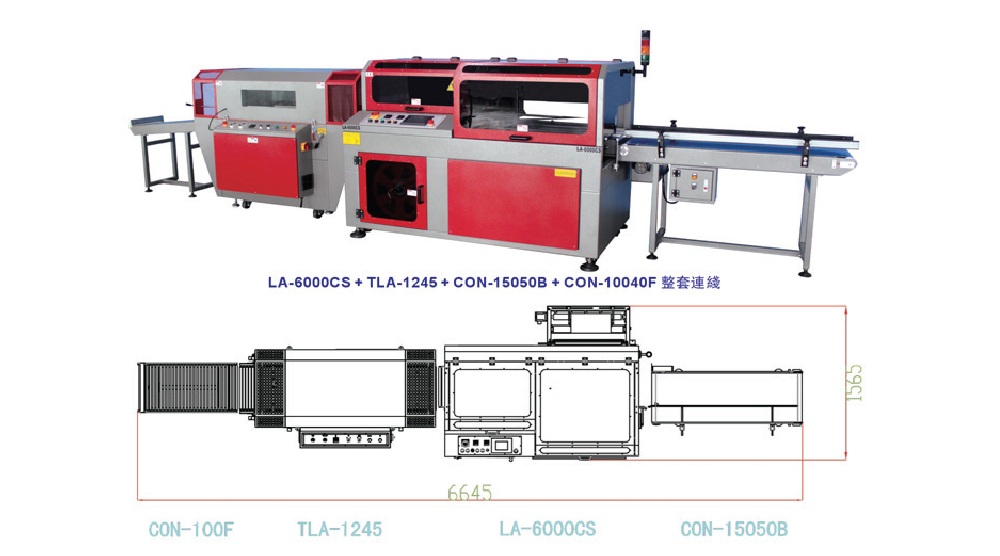

The Fully Automatic L Type Sealing Machine Ouya LA-6000CS offers a simple and precise control of all machine operations, making it an efficient solution for your packaging needs. The machine features a motorized center seal system as standard, ensuring neat and professional shrink wrapping.
It is designed to work perfectly with Polyolefin (POF) and Polyethylene Micro Perforated Film (PE) with a thickness ranging from 10 to 50µ (Note: single layer PE is not applicable). The machine complies with CE regulations, ensuring safety and reliability in production.
Machine Specifications & Key Features:
- Max. Sealing Size: 610 x 480 mm
- Max. Pack Height: 200 mm
- Motorized center seal system as standard (Only for CS and VMA model)
- Piece counter and batch production setting possible
- Automatic measurement of pack length
- Real-time output monitoring
- Control of irregular packs
- Reduced power consumption
- Compliance with CE regulations
Advanced Operation Control:
- Possibility of storing up to 10 different operation programs.
- Automatic control of the sealing bar height (Only for CS model).
- Double adjustment of the sealing blade temperature, both length-ways and broadways.
- Possibility of packing single packs or multipacks.
- Speed of conveyors electronically adjustable from the control panel.
Bahasa Indonesia
Mesin penyegel tipe-L otomatis penuh (Fully Automatic L Type Sealing Machine) Ouya LA-6000CS memungkinkan pengendalian yang sederhana sekaligus presisi untuk seluruh operasi mesin. Mesin ini dilengkapi dengan sistem segel tengah (center seal) bermotor sebagai fitur standar, menghasilkan kemasan shrink wrap yang rapi dan profesional.
Mesin ini dirancang untuk menggunakan plastik jenis Polyolefin (POF) dan Polyethylene (PE) Mikro-Perforasi dengan ketebalan 10 hingga 50 mikron (Catatan: plastik PE lapis tunggal tidak dapat digunakan). Mesin ini juga telah mematuhi standar regulasi keselamatan CE.
Spesifikasi & Keunggulan Utama:
- Ukuran Area Penyegelan Maksimal: 610 x 480 mm
- Tinggi Kemasan Maksimal: 200 mm
- Sistem center seal (segel tengah) bermotor sebagai standar (Khusus untuk model CS dan VMA)
- Tersedia fitur penghitung produk (piece counter) dan pengaturan produksi batch
- Pengukuran panjang kemasan secara otomatis
- Pemantauan hasil produksi secara langsung (real-time output)
- Kontrol khusus untuk kemasan tidak beraturan (irregular packs)
- Konsumsi daya yang lebih hemat energi
- Tersertifikasi standar keamanan CE
Fitur Kontrol Operasional Canggih:
- Kemampuan untuk menyimpan hingga 10 program operasi yang berbeda.
- Kontrol otomatis untuk penyesuaian tinggi area penyegelan / sealing bar (Khusus untuk model CS).
- Penyesuaian ganda untuk suhu pisau penyegel, baik dari sisi memanjang maupun melintang.
- Mendukung pengemasan produk satuan (single packs) maupun berkelompok (multipacks).
- Kecepatan konveyor dapat diatur secara elektronik dan mudah melalui panel kontrol.
Technical Specifications
Machine Specification
| Power Supply & Consumptionv | 220V/1ph/ 50HZ/3200W |
| Compressed Air Preasure & Volume | 6 Bar, 90L/min |
| Max. Sealing Size | 610 x 480 mm |
| Max. Pack Height | 200 mm |
| Max. Conveyor Speed | 30 m/min |
| Max. Packing Speed | 45 ppm |
| Central Seal Function | Yes |
| Machine Size (LxWxH) | 2040 x 1550 x 1650 mm |
| Packed Machine Size (LxWxH) | 2160 x 1730 x 1620 mm |
| Machine Weight (Netto / Gross) | 610 / 780 kg |
| Closing conveyor | No |
