Product Overview

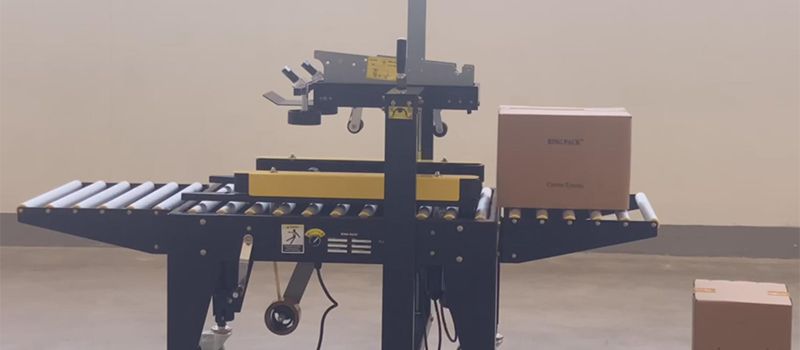

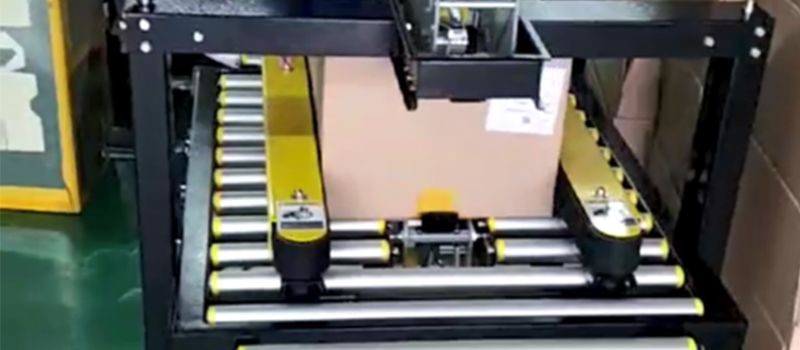

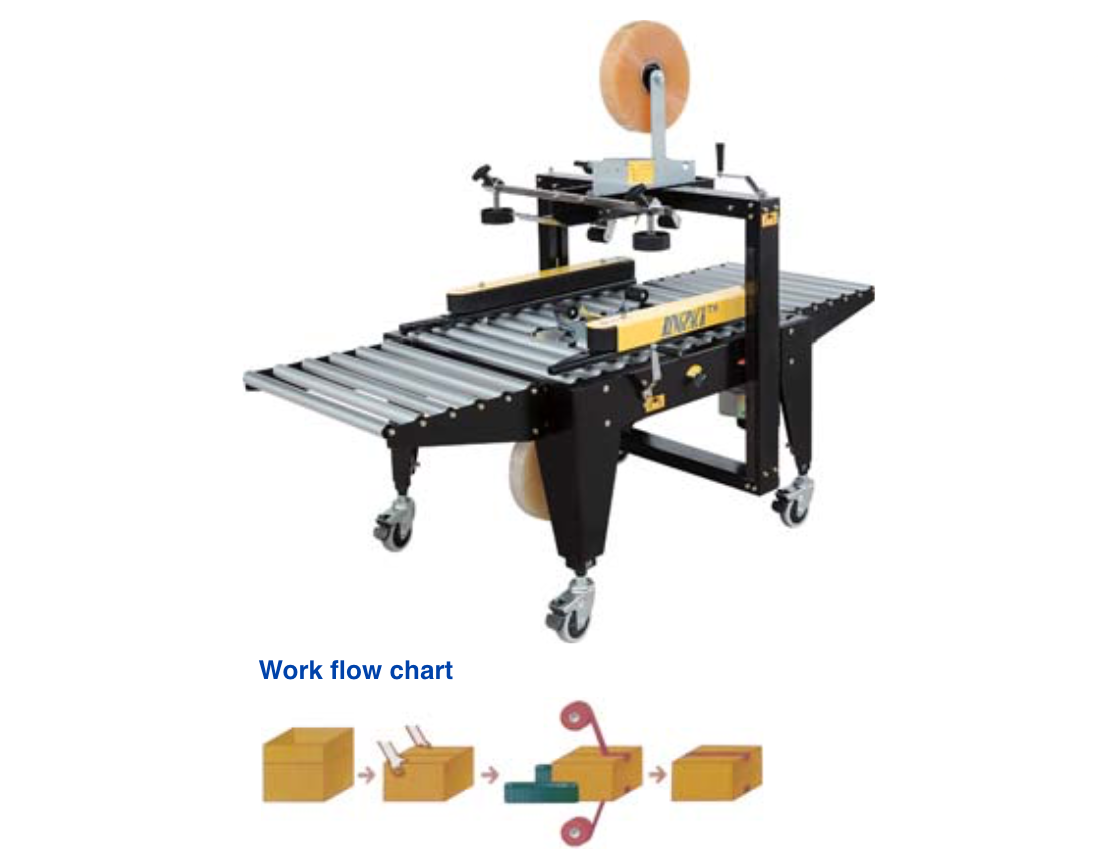

Semi Automatic Carton Sealer
RPA-05
- Compact and durable design
- Easy to operate
- Side belt driven; suitable for sealing narrow carton
The RPA-05 semi-automatic case sealer can effectively seal small and light cartons without causing problems, which will increase production efficiency. Parameters should be changed manually to make the case sealing machine applicable for different sizes of case. The case sealer is designed and made with users at the core. Therefore, operators can use the case sealer without professional training, hence avoiding stopping the case sealing machine during production, which reduces production costs while enhancing productivity.
Key Features
- The semi-automatic case sealer enables the tape to be automatically applied to the top and bottom center seam, it is applicable for carton boxes with the same size;
- Side drive belts are equipped to transport lightweight boxes;
- This case sealer can be manually adjusted to adapt to various case sizes;
- Applicable for all cardboard boxes and cases;
- Exclusive design with compact structure makes this box taping machine more economical and energy efficient;
- Equipped with sophisticated parts to ensure stable performance and extend service life;
- This semi-automatic case sealer offers faster working speed and more consistent sealing effect than manual case taping equipment;
- Ready availability of standard parts;
Technical Specifications
Machine Specification
| Carton Size | (L) 200mm x (W) 100~500mm x (H) 100~500mm |
| Table Height | 580~780 mm |
| Working Speed | 700~1200 cartons / hour |
| Machine Size | (L) 850mm x (W) 830mm x (H) 1200~1600mm |
| Power | 0.2 kW 110V/220V Single Phase, 50-60Hz |
| Tape Width | 48mm, 60mm, 75mm |
| Machine Weight | 120 kg |
