Product Overview

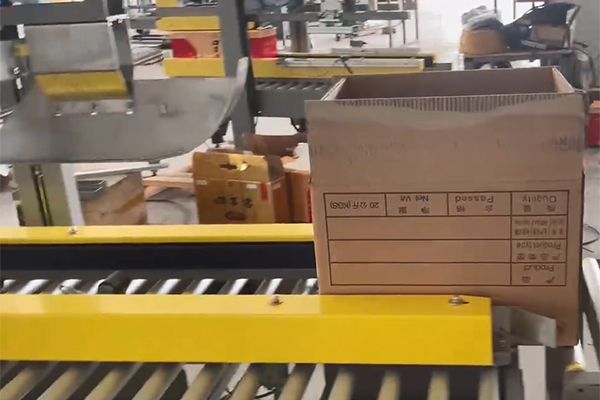

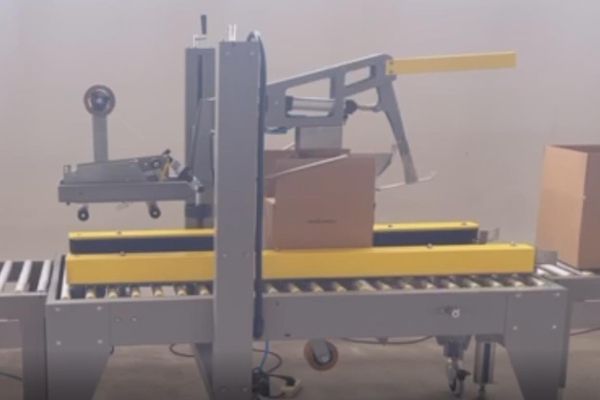

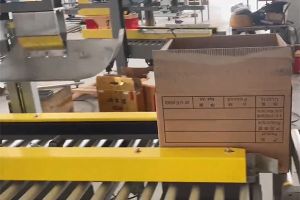

RPC-05 Semi Automatic Flaps Folding & Side Belts Driven Sealer
- Fit for sealing uniform size cartons in mass production line
- Automatic flaps folding and top & bottom sealing
- Side belt driven; suitable for heavy duty operation
The RPC-05 case sealer can be used as an essential part of end-of-line packaging line to accomplish flap folding and case sealing operations automatically and effectively. Side drive belts work at the speed of 18 meters per minute. The width of the tape installed in this case sealing machine ranges from 48 mm to 75 mm, which is applicable for carton boxes of 200-500mm in length, 150-500mm in width and 150-500mm in height. Thanks to these features, this case sealer machine is widely used in different industries, including food and beverage, pharmaceutical, electronics, retailing and logistics.
Technical Specifications
Machine Specification
| Carton Size | (L)200-600mm x (W)150-500mm x (H)150-500mm |
| Table Height | 580-780 mm |
| Belt Speed | 18 m/min |
| Machine Size | (L)1690mm x (W)830mm x (H)1180mm |
| Power | 220V/380V Single Phase, 50-60Hz |
| Pneumatic | 5 kg/cm2 |
| Tape Width | 48mm, 60mm, 75mm |
| Machine Weight | 180 kg |
