Home > Products > Carton Sealer > Semi Automatic Carton Sealer RPS-05

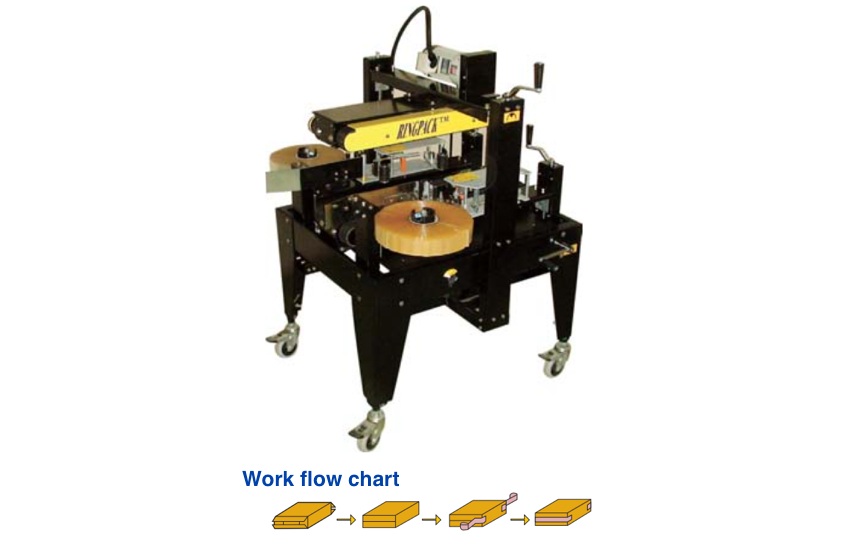

Semi Automatic Carton Sealer RPS-05
1 / 2
Semi Automatic Carton Sealer RPS-05 Semi Automatic Carton Sealer RPS-05
Ring Pack Packaging

Semi Automatic Carton Sealer RPS-05

Semi Automatic Carton Sealer RPS-05

Model: Ring Pack RPS-05
SKU: Ring Pack RPS-05
Category: Carton Sealer
Type: Machinery
Industries:
E-commerce and Logistics
Q & A (Tanya & Jawab) Contact Us
Facebook Twitter LinkedIn WhatsApp Copy Link

Product Overview

RPS-05 Semi Automatic Top & Bottom Belts Driven And Two Side Sealer

  • Compact and durable design, easy to operate.
  • Standard specification item.

The RPS-05 side taping case sealer is primarily designed for sealing of special packages by sealing both sides of cases at the same time. The taping heads are installed on both sides of the case sealing machine, quite different from conventional case sealers, and moved with cartons transported between top and bottom drive belts. During this process, carton boxes will be sealed in short time. When box size need to be changed, manual adjustments are required to accommodate different case sizes. This side taping carton sealer can be integrated into an automatic packaging line having carton erector.

Bahasa Indonesia

RPS-05 Semi Automatic Top & Bottom Belts Driven And Two Side Sealer

  • Desain yang ringkas dan tahan lama, mudah dioperasikan.

  • Barang spesifikasi standar.

Mesin penyegel kotak pelakban samping RPS-05 terutama dirancang untuk menyegel paket khusus dengan cara menyegel kedua sisi kotak secara bersamaan. Kepala pelakban dipasang di kedua sisi mesin penyegel kotak—yang cukup berbeda dari mesin penyegel kotak konvensional—dan bergerak bersama kardus yang diangkut di antara sabuk penggerak atas dan bawah. Selama proses ini, kotak kardus akan disegel dalam waktu singkat. Ketika ukuran kotak perlu diubah, penyesuaian manual diperlukan untuk mengakomodasi berbagai ukuran kotak yang berbeda. Penyegel kardus pelakban samping ini dapat diintegrasikan ke dalam lini pengemasan otomatis yang memiliki mesin pembuat kardus (carton erector).

Technical Specifications

⚙️ Machine Specification

Carton Size (L) 200mm x (W) 250-400mm x (H) 100-250mm
Table Height 650 mm - 850 mm
Machine Speed 1200-2400 cartons/ hour
Power Source 220V/380V Single Phase, 50-60Hz
Tape Width 48 mm - 75 mm
Machine Weight 130 kg
