Product Overview

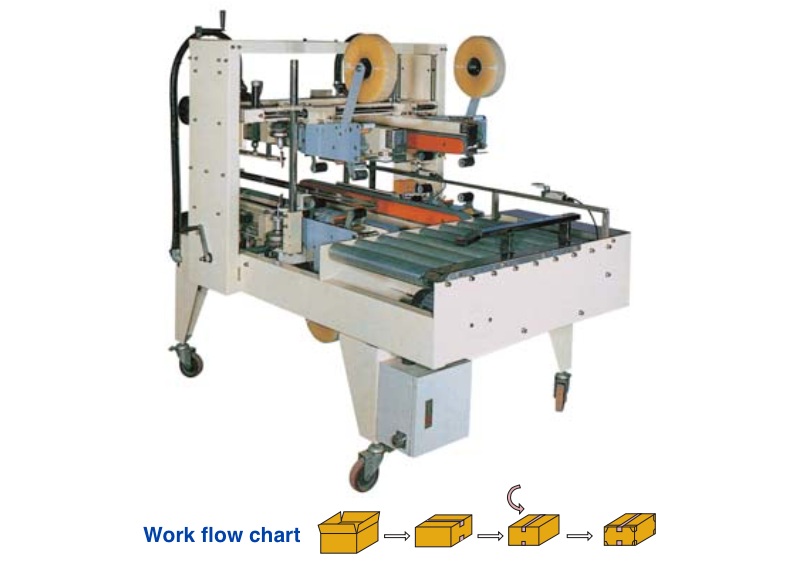

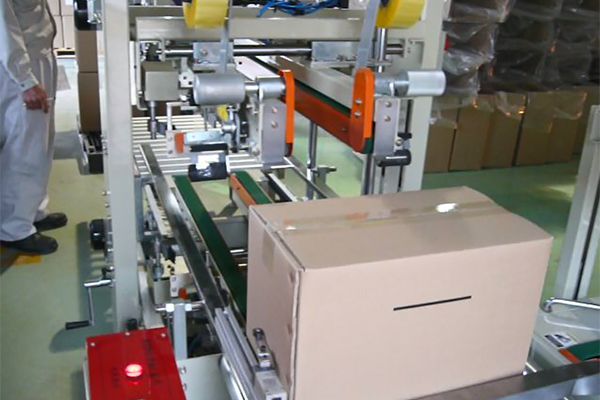

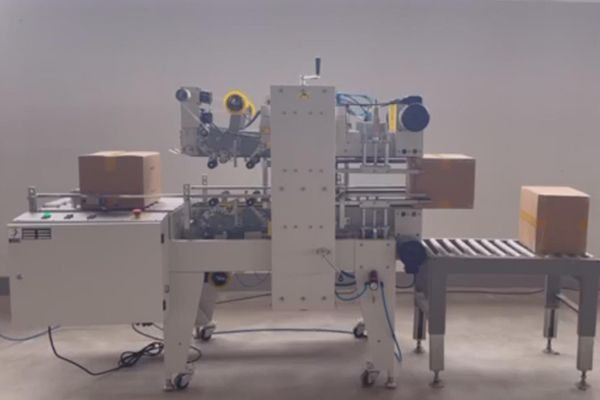

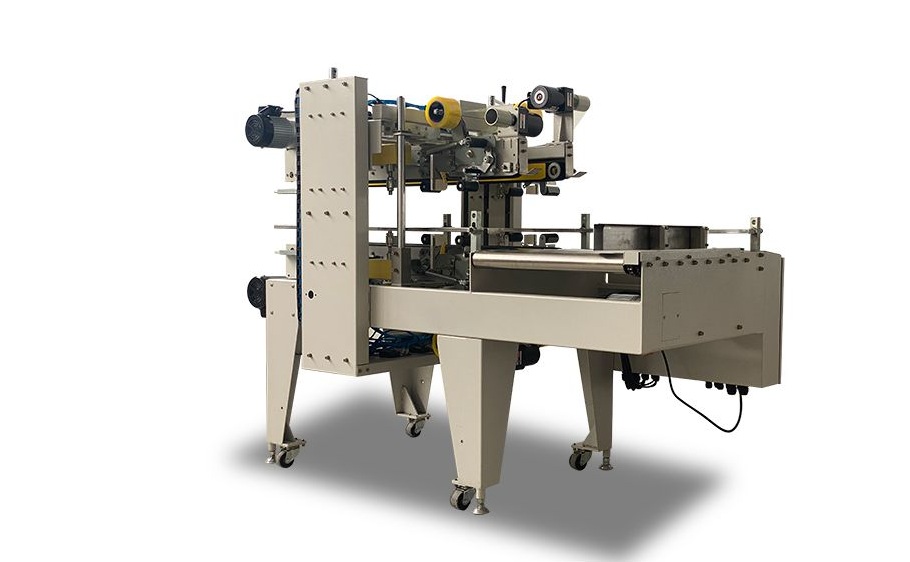

RPG-09L Semi Automatic Carton Edge Sealer L Type
- Compact and durable design, easy to operate.
- Standard specification item.
The RPG-09L Semi-Automatic Carton Edge Sealing Machine can realize corner sealing of all four outer edges of cartons. This corner sealing machine is equipped with in-line 90 degree box turner to evenly and precisely seal carton corners, which eliminates the need for hand taping of four outer edges and thus reducing labor expenses while ensuring the sealing quality. Parameters should be changed manually to make the case sealing machine applicable for different sizes of cases. Thanks to these features, this semi-auto four edge case sealer is widely used in different industries, including food and beverage, pharmaceutical, electronics, retailing and logistics.
Bahasa Indonesia
RPG-09L Semi Automatic Carton Edge Sealer L Type
- Desain yang ringkas dan tahan lama, mudah dioperasikan.
- Barang spesifikasi standar.
Mesin Penyegel Tepi Kardus Semi-Otomatis RPG-09L dapat mewakili penyegelan sudut dari keempat tepi luar kardus. Mesin penyegel sudut ini dilengkapi dengan pemutar kotak 90 derajat in-line untuk menyegel sudut kardus secara merata dan presisi, yang menghilangkan kebutuhan pelakbanan tangan pada keempat tepi luar sehingga mengurangi biaya tenaga kerja sekaligus memastikan kualitas penyegelan. Parameter harus diubah secara manual agar mesin penyegel kotak dapat digunakan untuk berbagai ukuran kotak yang berbeda. Berkat fitur-fitur ini, mesin penyegel empat tepi semi-otomatis ini banyak digunakan di berbagai industri, termasuk makanan dan minuman, farmasi, elektronik, ritel, dan logistik.
Technical Specifications
Machine Specification
| Carton Size | (L) 300-600mm x (W) 200-500mm x (H) 200-500mm |
| Table Height | 650 mm - 800 mm |
| Machine Speed | 400 cartons/ hour |
| Machine Dimension | (L) 2000mm x (W) 1200mm x (H) 1500mm |
| Power Source | 220V/380V Single Phase, 50-60Hz |
| Pneumatic | 5-6 kg/cm2 150L/min |
| Tape Width | 60 mm - 75 mm |
| Machine Weight | 450 kg |
