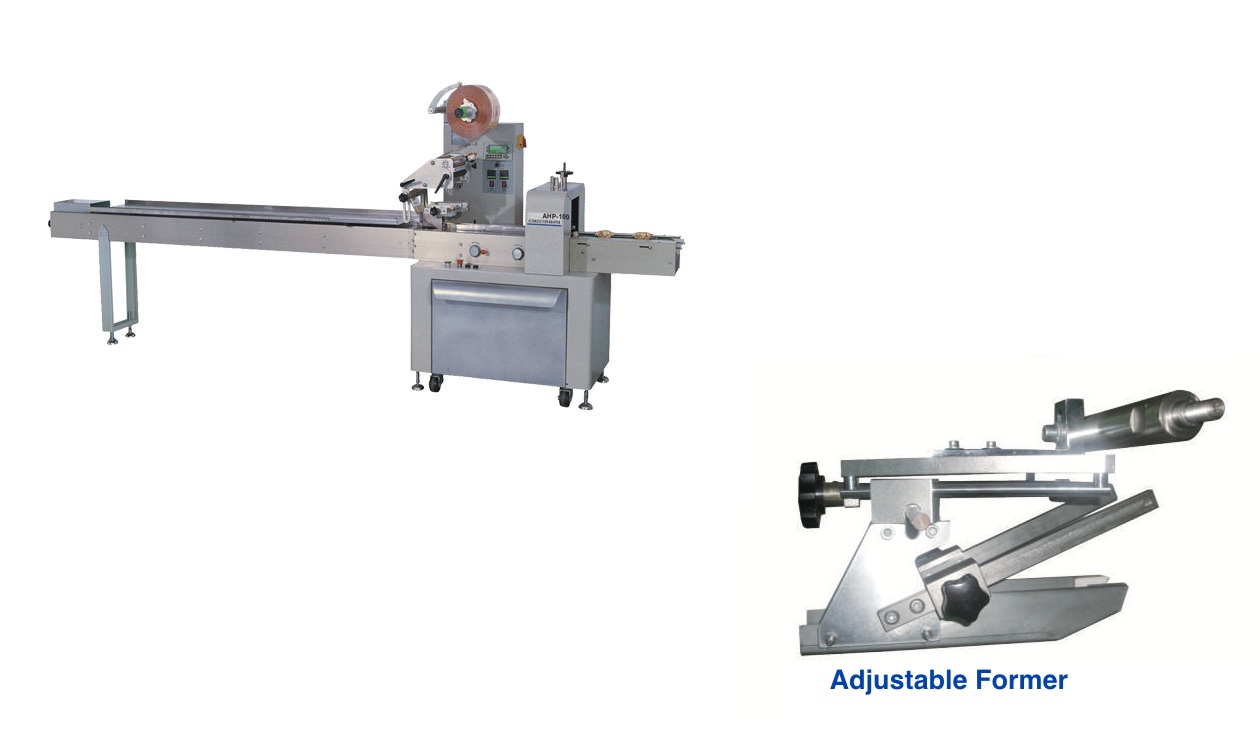

Product Overview
Application : For packing various solid regular objects, such as biscuits, bread, ice cream, candy, medicine, hardware, loose product loaded by box/tray, etc.
Features:
1. Simplified mechanic structure, easy to maintenance, less vibration, less wear and long durable.
2. The main control circuit takes the single chip developed by inhouse, digital screen display and control by frequency inverter.
3. Highly sensitive respond optical-eye device can trace the eyemark automatically and accurately
4. Independent temperature control for each sealer makes the perfect and tight sealing and suitable for a wide variety of flexible packing materials.
Options:
1. Solid ink date code printer.
2. Sealing jaw with hole punching device.
Technical Specifications
Machine Specification AHP-100
| Bag Size (L x W x H) | 65-160 mm x 35-100 mm x 35-200 mm |
| Capacity | 35-200 bags/min. |
| Power Consumption | 2.7kw |
| Motor Power | 0.6kw |
| Heating Power | 2.1kw |
| Film Width | 80-220 mm |
| Number of Jaw | Double Jaw |
| Machine Weight | 450 kg |
| Dimension (L x W x H) | 4000mm x 920mm x 1600mm |
Machine Specification AHP-320
| Bag Size (L x W x H) | 100-270 mm x 35-160 mm x 5-50 mm |
| Capacity | 35-180 bags/min. |
| Power Consumption | 3.5kw |
| Motor Power | 0.6kw |
| Heating Power | 2.9kw |
| Film Width | 80-370 mm |
| Number of Jaw | Double Jaw |
| Machine Weight | 600 kg |
| Dimension (L x W x H) | 4000mm x 950mm x 1600mm |

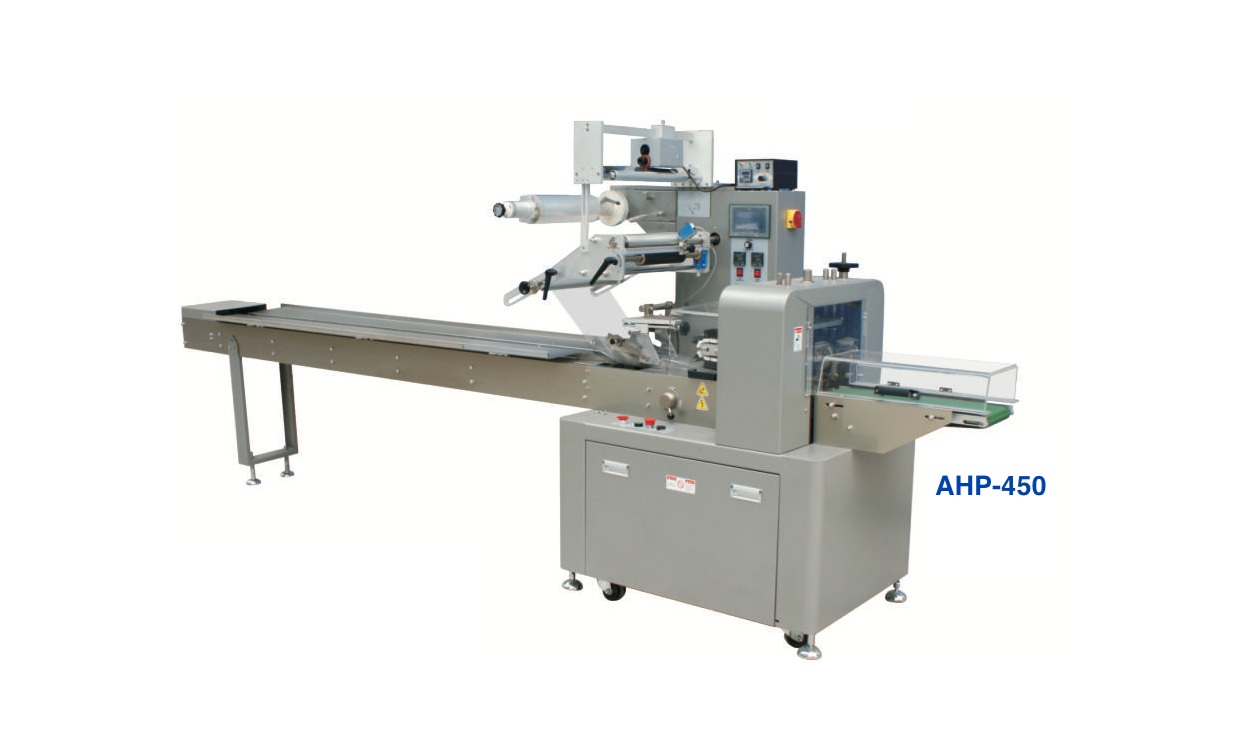

Machine Specification AHP-450
| Bag Size (L x W x H) | 200-600 mm x 50-180 mm x 5-75 mm |
| Capacity | 20-90 bags/min. |
| Power Consumption | 3kw |
| Motor Power | 0.6kw |
| Heating Power | 2.4kw |
| Film Width | 120-480 mm |
| Number of Jaw | Single Jaw |
| Machine Weight | 650 kg |
| Dimension (L x W x H) | 4000mm x 950mm x 1600mm |
