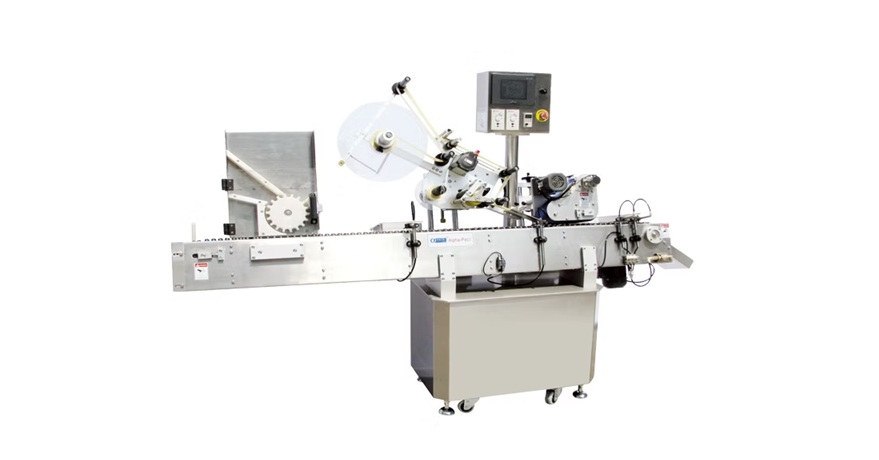

Product Overview
Application :

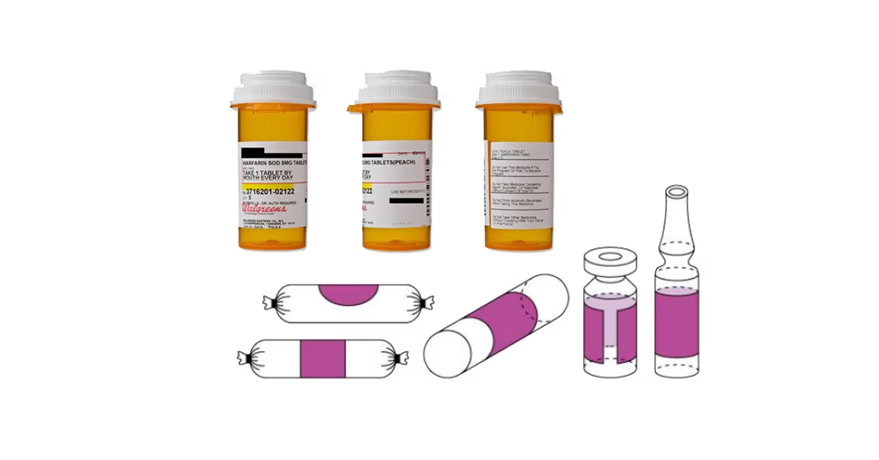

This machine is designed for non-standing round bottles and containers that are not vertically stable (round bottom or top heavy) including ampoules, vials, crayons, tube, lip balm containers and small batteries, etc.
Features :
1. Machine main construction by Stainless Steel #304.
2. PLC combined with touch screen control system.
3. High accuracy labelling, +1mm tolerance.
4. Servo motor driven labeling head, labelling speed is automatically synchronized with conveyor speed to ensure high speed and quality labelling.
5. Equipped with special designed product conveyor.
Option:
1. Hot printer.
2. Transparent label sensor.
3. Customer-made loading case for each product size.
Technical Specifications
Machine Specification
| Label Height/ Width | A:10-110mm; C: 10-170mm |
| Label Length | 15-80mm |
| Product Dia./Width | 10-25mm |
| Labeling Speed | 12-35mm/min |
| Reel Inner/ Outer Dia. | Within 76mm/ 360mm |
