Product Overview

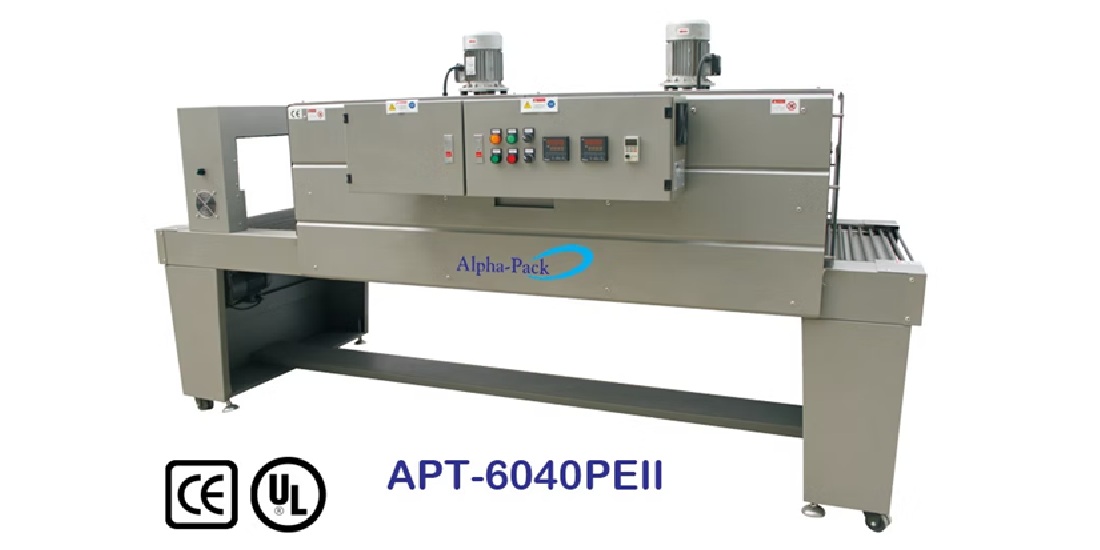

PE Shrink tunnel is equipped with fully re-circulating air chamber and discharge end cooling fans. This machine is special designed for PE film packaging and is the best couple with PE Sleeve wrapping machine. Like other shrink tunnels, this also can be integrated with L-Sealer machines or overwrapping machines for wrapping improvement.
Key Features
- Top and bottom Fans recycling system
- Live roller rod conveyor (net conveyor as an option)
- Conveyor speed variable by frequency inverter
- Digital temperature control
- With cooling fan at the end of tunnel
- Metal heating element, long durable and easy maintenance
Technical Specifications
Machine Spesification APT-6040PE I
| Max. Conveyor Speed | 15M/min. |
| Machine Dimension | 2200 x 970 x 1600 mm |
| Tunnel Dimension | 1200 x 600 x 400 mm |
| Power | 9 KW |
| Voltage | 380V/3ph |
| Packed Machine Size (LxWxH) | 2160 x 1060 x 1870 mm |
| Machine Weight (NW / GW) | 420 / 600 kg |
Machine Spesification APT-6040PE II
| Max. Conveyor Speed | 20M/min. |
| Machine Dimension | 2800 x 970 x 1600 mm |
| Tunnel Dimension | 1800 x 600 x 400 mm |
| Power | 12 KW |
| Voltage | 380V/3ph |
| Packed Machine Size (LxWxH) | 2960 x 1090 x 1870 mm |
| Machine Weight (NW / GW) | 640 / 800 kg |
