Product Overview
ZAPAK ZP22 Series
Battery Powered Automatic Combination Plastic Strapping Tool
Medium Duty Strapping (Max. tension force 250 kgs)
Model No. ZP22-6C
Model No. ZP22-9C
- The most economic combination tool for standard duty strapping.
- Extreme long service life
- Automatic tension. Automatic friction weld sealing and cutting. No metal seals required.
- Ergonomic design and excellent weight distribution reduce hand strength

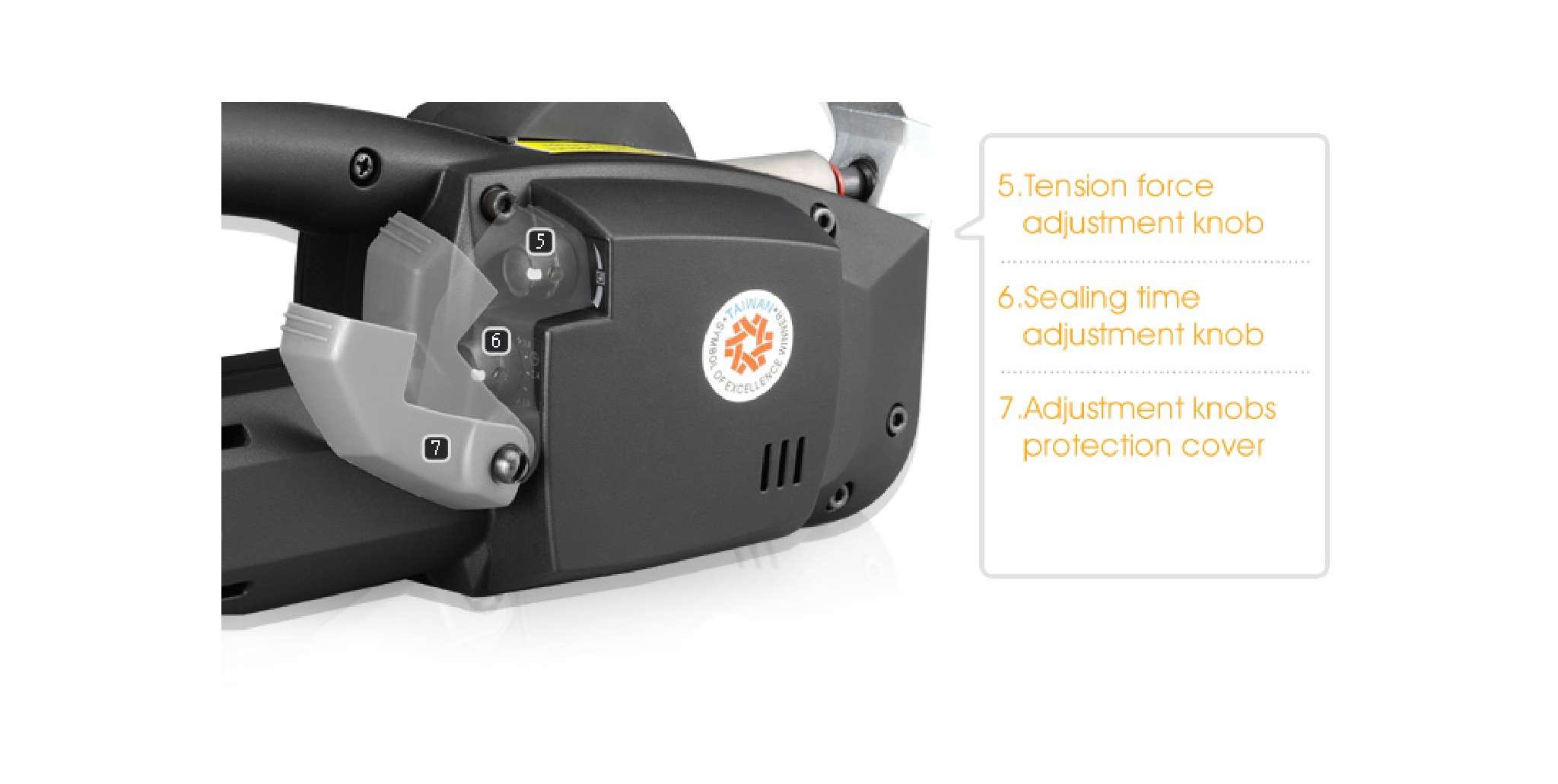

- Adjustable tension, Max 250kgs for standard duty strapping job.
- Adjustable sealing time for various strap specifications.
- Easy "one-step" straps inserting
- User self-adjustable front & rear strap guiders to assure perfect strap alignment.
- User changeable strap cutting blade and other wearing parts.
Technical Specifications
Tools Specification ZP22-6C-Li
| Fits Poly-strap | PP / PET |
| Strap Width | 12 ~ 16 mm |
| Strap Thickness | 0.60 ~ 1.27 mm |
| Tension Range | 25-100 kg ( PP ) | 50-250 kg ( PET ) |
| Sealing Efficiency | 85+-5% |
| Battery Charger Voltage | 115V ( PP ) | 220V ( PET ) |
Tools Specification ZP22-9C-Li
| Fits Poly-strap | PP / PET |
| Strap Width | 16 mm & 19 mm |
| Strap Thickness | 0.75 ~ 1.27 mm |
| Tension Range | 30-120 kg ( PP ) | 50-270 kg ( PET ) |
| Sealing Efficiency | 85+-5% |
| Battery Charger Voltage | 230V ( PP ) | 240V ( PET ) |
