Product Overview
ECB-07

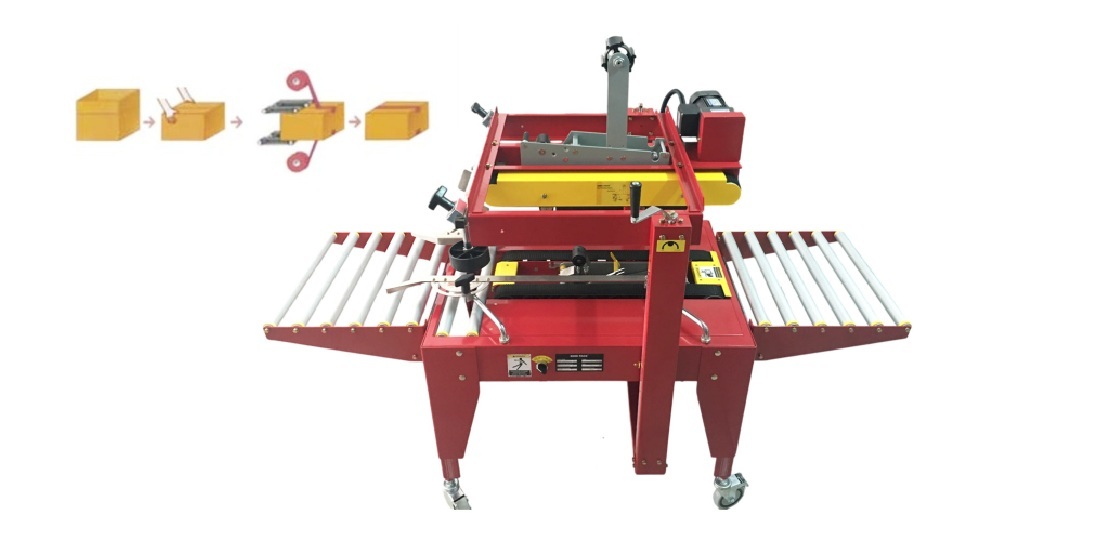

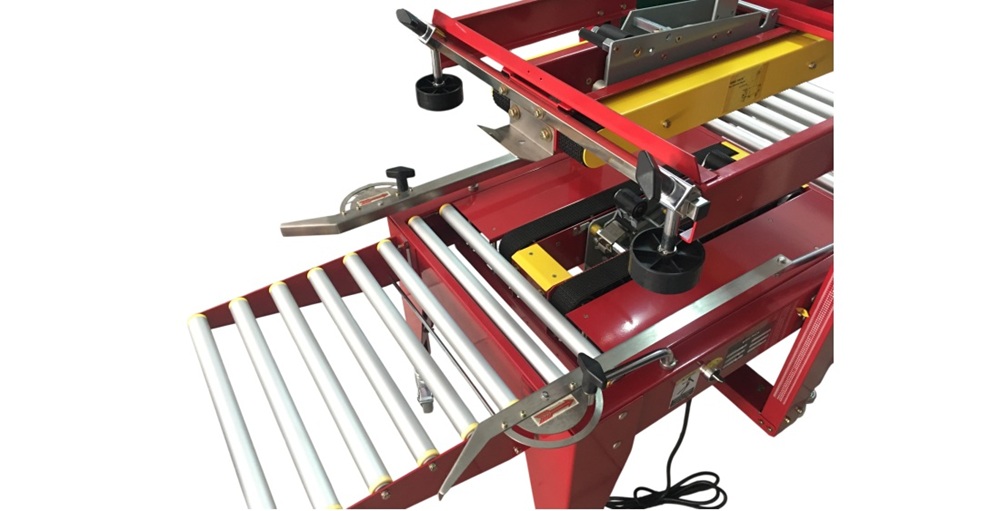

Economic Semi Automatic Carton Sealer RING PACK ECB-05
Semi Automatic Top & Botttom Belts Driven Sealer
FEATURES:
▶ This series is a stand-alone model, the upper and lower "one" type automatic sealing, suitable for the same size carton in the same time period
▶ The transmission design is upper and lower belt drive, suitable for heavier cartons
▶ Suitable for carton specifications, manual adjustment of different specifications of cartons
▶ Packaging items, all cardboard boxes can use this series of economical, labor-saving, beautiful, and lightweight models
▶ The performance of the parts is precise and durable, the operation is convenient, the operation is stable, the service life is long, and there is no noise.
▶ Guaranteed to be more beautiful, faster and more efficient than manual tape
▶ Standard specification products, parts available at any time
Technical Specifications
Machine Specification
| Carton Size | (L)200mm x (W)200-500mm x (H)100-500mm (Tape Head 2") |
| Table Height | 580 ~ 780 mm |
| Working Speed | 700 ~ 1200 cartons /hour |
| Machine Size | (L) 770mm x (W) 735mm x (H) 1200~1600mm |
| Power | 0.18 kW 110V/220V Single Phase, 50-60Hz |
| Tape Width | 48mm ~ 75mm（alternative use) |
| Machine Weight | 120 Kg |
