Product Overview

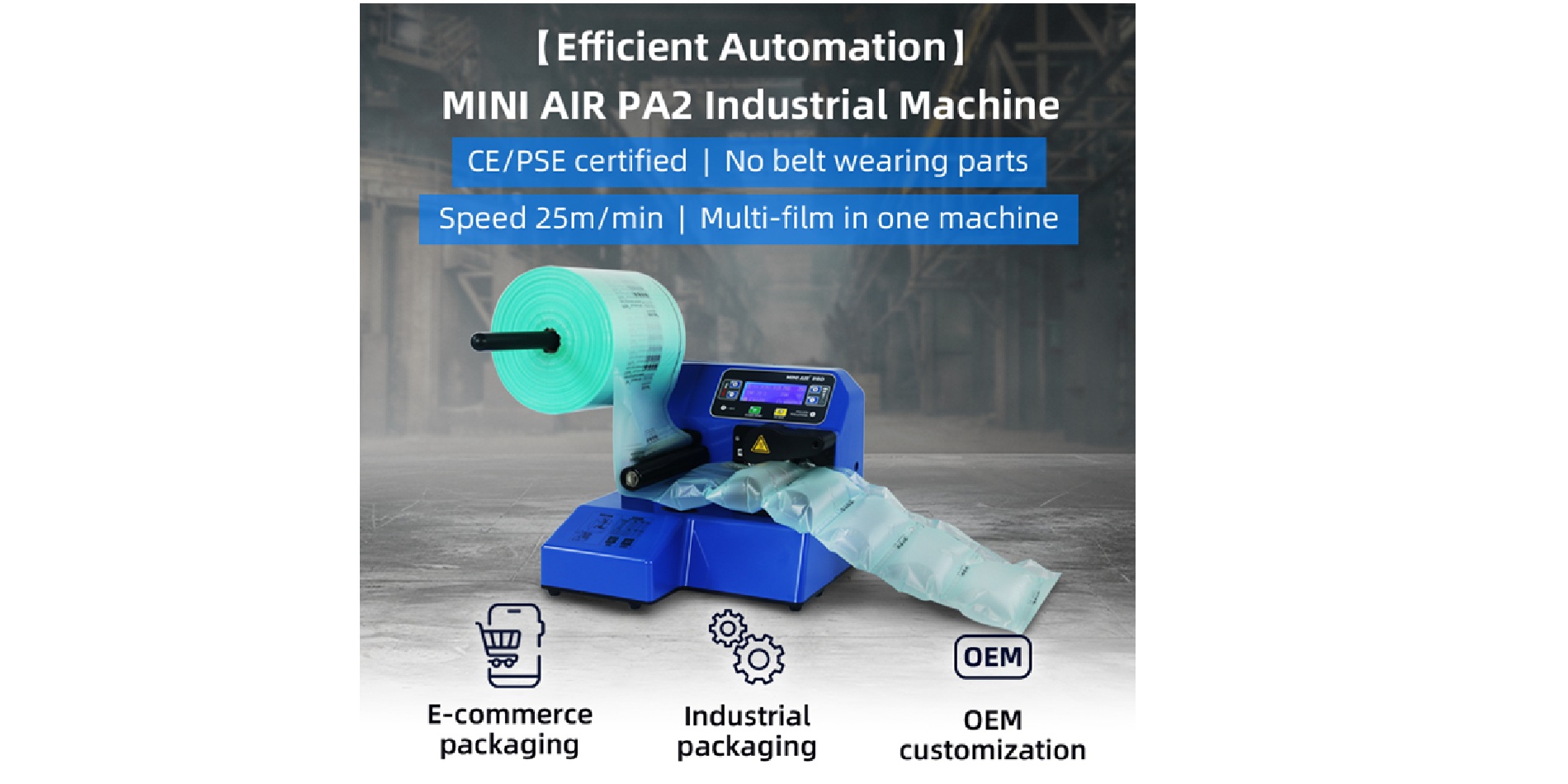

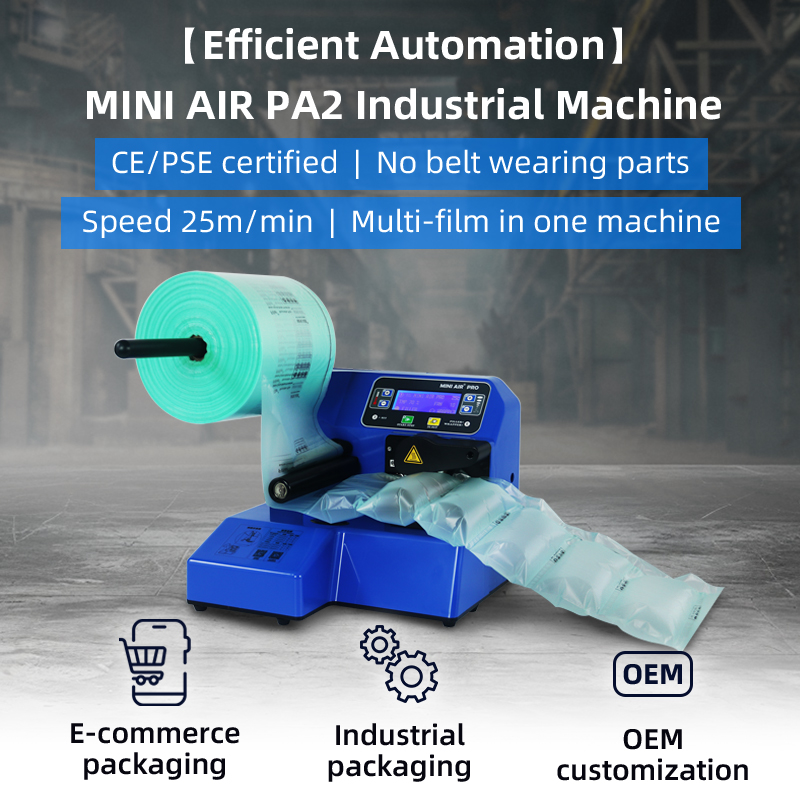

Industrial Air Cushion Machine, Mini Air Cushion System
MINI AIR PRO 2 is our newest industrial air cushion machine, durable and convenient, no belt, less maintenance, no preheating, start right away,one button swich to different type(Filler/Wrapper), and with speed as fast as 25m/min, worked for films width 200mm, 400mm, 600mm,800mm, also it can be connected with different extension like winder,film delivery system and so on. It is programmable and can be seamlessly integrated into MINI AIR Cushion System technology.
Details
Key Features
* One machine can make air pillow , air tube, air bubble bag
* Adjustable Air Volume, Temperature, Length needed

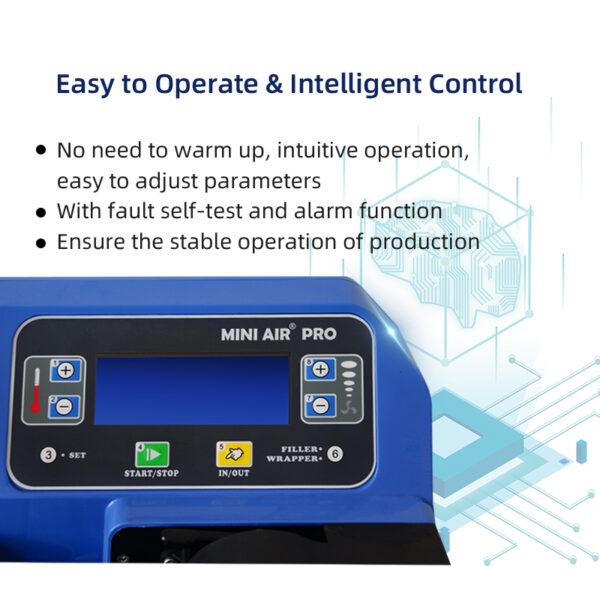

* Easy operation and maintenance
* Well sealed without air leakage
* CE, UL, PSE certified, quality guaranteed
Technical Specifications
Tools Specification
| Speed | 25m/min (82 feet) |
| Operation | automatic |
| Power | 240w |
| Voltage | 220v/110v, 50HZ-60HZ |
Applications
Compatible with :
Filler(Air Pillows):200*100mm,200*130mm,200*150mm,200*200mm
Thickness: 20 micron
Length: 1280 meters
Material: HDPE
Wrapper(Air Bubbles): Bubbles, Bubbles wave, Tube large, Tube small, Tube multi, Quilt large, Quilt small
Thickness: 20 micron
Length: 550 meters
Material: HDPE
