Product Overview
Compact and robust, high resolution inkjet printer. The best solution of coding and marking requirement. Easy and reliable exceed your expectation
■ Features:
- Standalone: Print height through 1mm to 70mm on variety of substrates.
- Flexibility in print message creation.
- Advanced Ink Delivery System: Automatically ink prime, drain even one button can implement purging

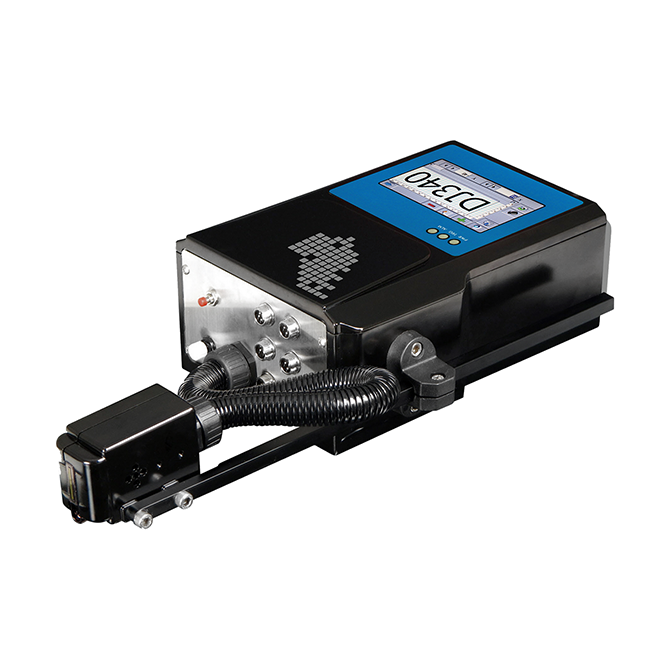

The Dotjet Piezo Jet Printer is designed to meet a wide range of marking needs that require high quality printing with crisp, detailed barcodes, images and text. The printers support a wide range of inks, including UV-curable and oil-based inks, to meet a variety of printing needs and substrates.

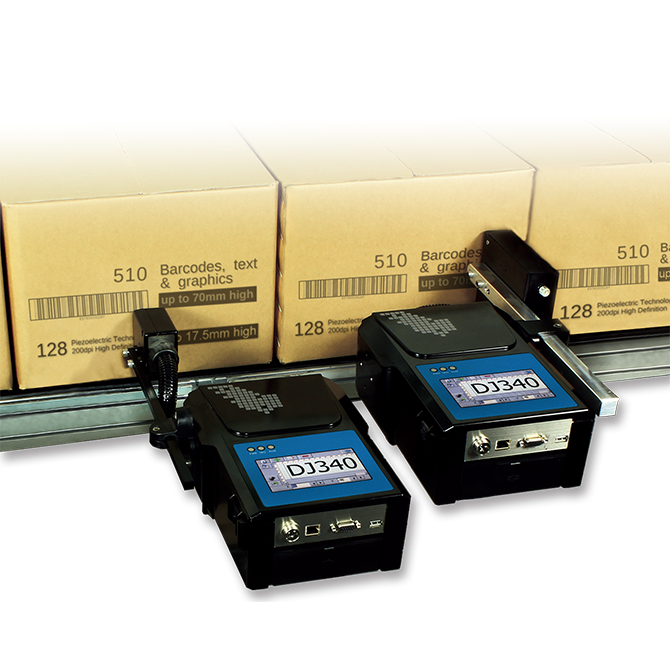

The DJ340 is designed for satisfying basic coding and marking need, high resolution codes up to 72 mm (2.8 in) print height, 17.5 mm (2.8 in) head is alternative which are compatible with the inks apply on porous and non-porous substrates with consistently high-resolution text, logo and barcodes printing.
Technical Specifications
Machine Specification
| Print system | Piezo Inkjet System |
| Max. Print height | 70 mm (PT510 Head) |
| Max. print speed | 45 Mtr/min (185x200 dpi) |
| Connectivity | Ethernet, RS232, RS485, Encoder, Photocell |
| Display | 4.3 inch touch screen |
| Supported print contents | Text, Image, External Data, Counter, Barcode, Database Connection |
| Supported Barcode | Barcode 1D: EAN8,EAN13,EAN128,CODE25,CODE39,CODE128, etc Barcode 2D: PDF47, QRCODE, DATAMATRIX, etc |
| Power | 110-220VAC 50/60Hz |
