Product Overview

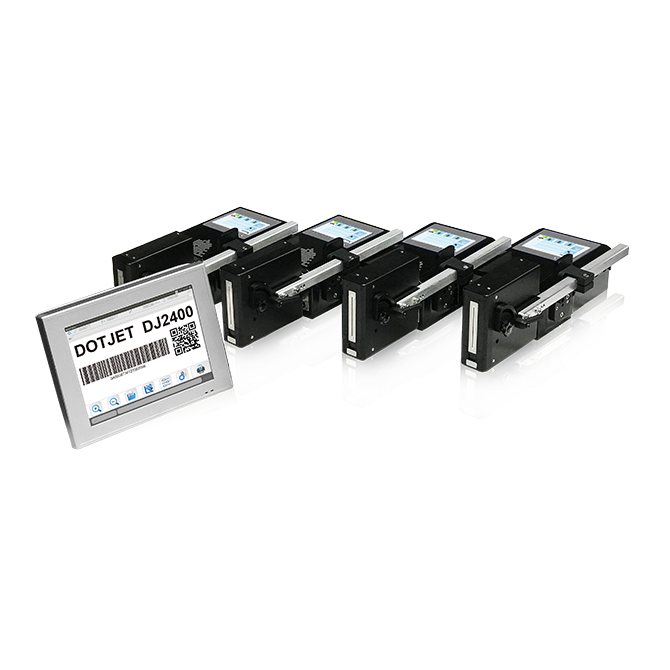

The widest printing format on the market that still give a remakable high resolution for highest quality and clear print result. Equiped with the most powerfull controller that able to connect with up to 4 print head system on single controller. The controller give much flexibility for operator to manage each printhead over the network. Give you transparency into your packaging line operation and manage the print job remotely.

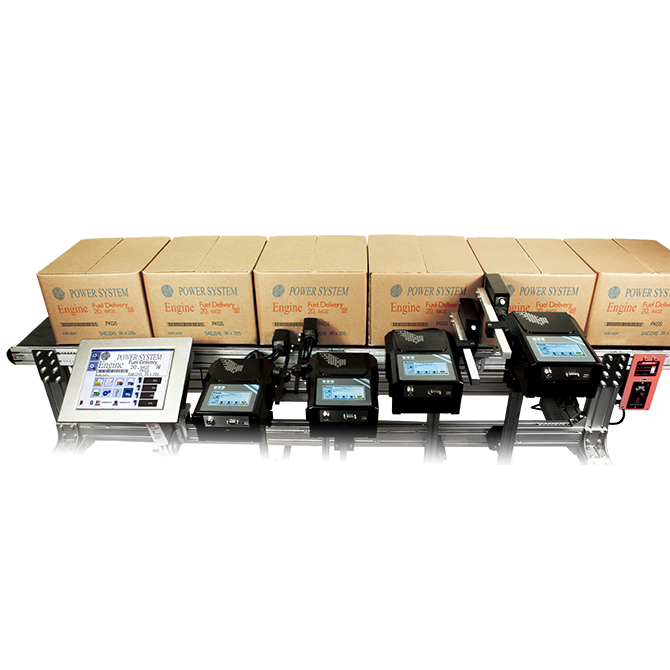

Up to 70 mm of print height give wide format print design, excelent for printing big size of products such as corrugated board / carton boxes, large aluminium panel, plastics containers etc.
■ Features:
- Print Head Connection Capability: One controller is available for controlling four different type of print heads allowing combination.

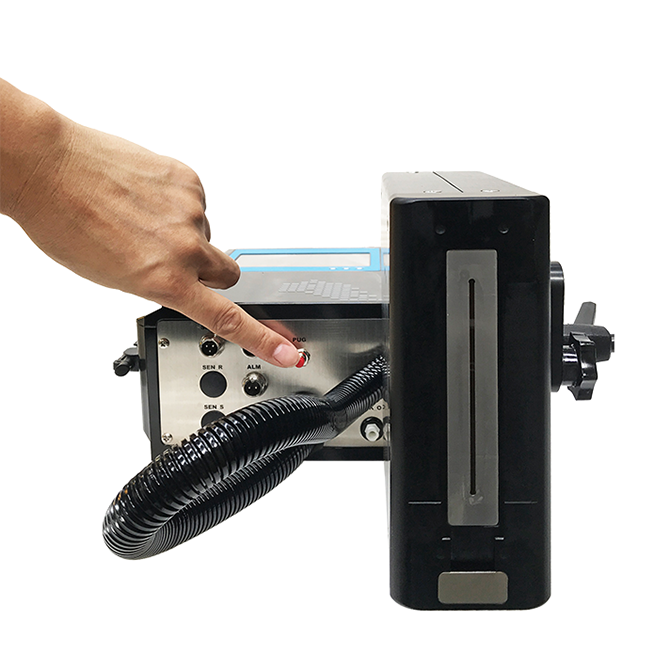

- Advanced Ink Delivery System: Automatically ink prime, drain even one button can implement purging.
- Gather actionable data from across your production.
Technical Specifications
Machine Specification
| Print system | Piezo Inkjet System |
| Max. Print height | 70 mm (PT510 Head) |
| Max. print speed | 60 Mtr/min (185x200 dpi) |
| Connectivity | Ethernet, RS232, RS485, Encoder, Photocell |
| Display | Controller: 12 inch LCD touch screen | Print head system: 4.3 inch LCM module |
| Special Features | Up to 4 printhead controll, Cloud Printing Solution |
| Supported print contents | Text, Image, External Data, Counter, Barcode, Database Connection |
| Supported Barcode 1D | EAN8,EAN13,EAN128,CODE25,CODE39,CODE128, etc |
| Supported Barcode 2D | PDF47, QRCODE, DATAMATRIX, AZTEC CODE etc |
| Power | 110-220VAC 50/60Hz |
