Product Overview

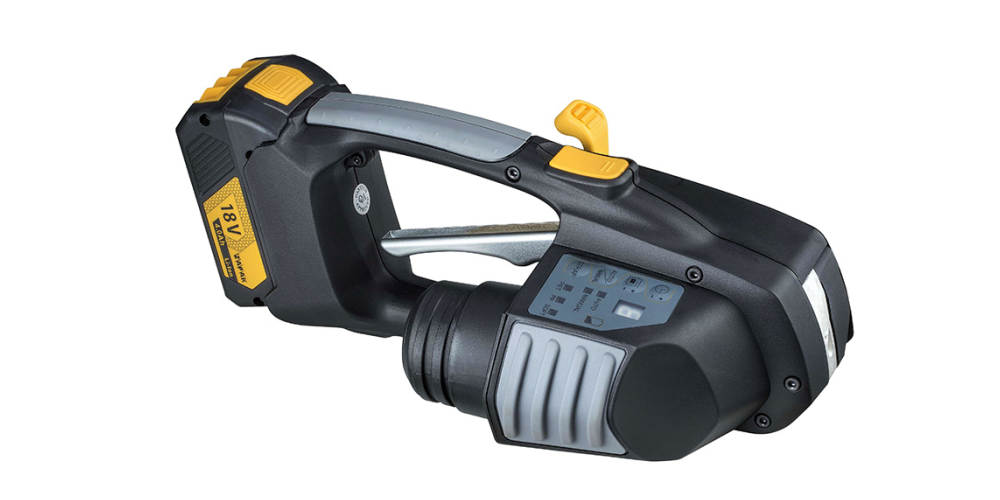

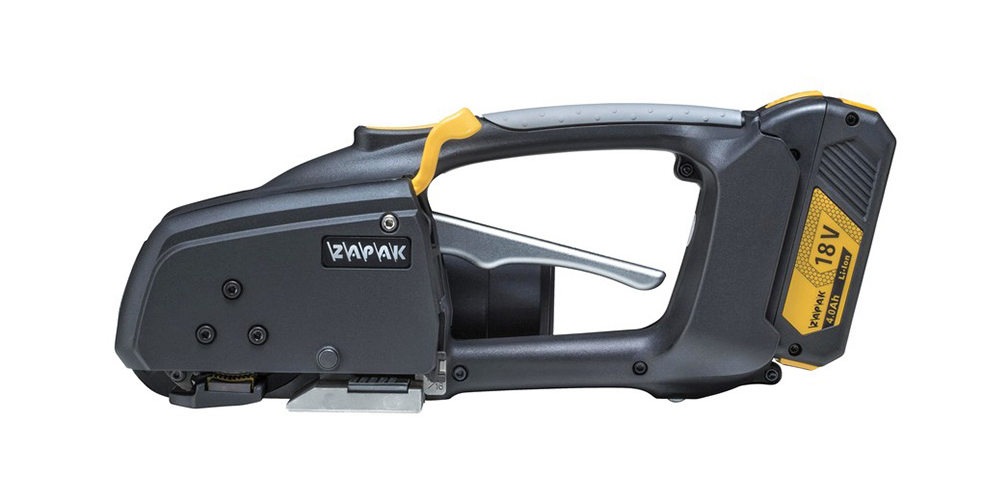

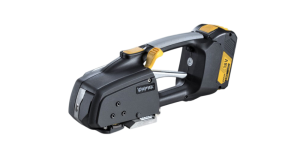

ZP90 Combination Plastic Strapping Tool
For light-duty use
ZP-90A Battery Strapping Tool is designed for use with PP and PET straps in light-duty industrial applications.
Lightweight and ergonomic, it’s powered by ZAPAK’s Li-ion battery and a patented brushless motor, ensuring long-lasting, reliable performance in vertical or horizontal use.
The ZP-90A complies with CE, RoHS, and its Li-ion battery meets UN38.3 transportation safety standards.
Key Features
Technology
- Brushless motor-ZAPAK patented single motor design provides extremely long service life.
Powerful & Speedy
- Max. tension 120 KGS (1200N) - Light Duty model.
- Patented new strap grippers design contributes to high tension ability and strap quality tolerance.
- Single-handed operation performs automatic tensioning, friction welding and cutting efficiently.
Smart & Easy

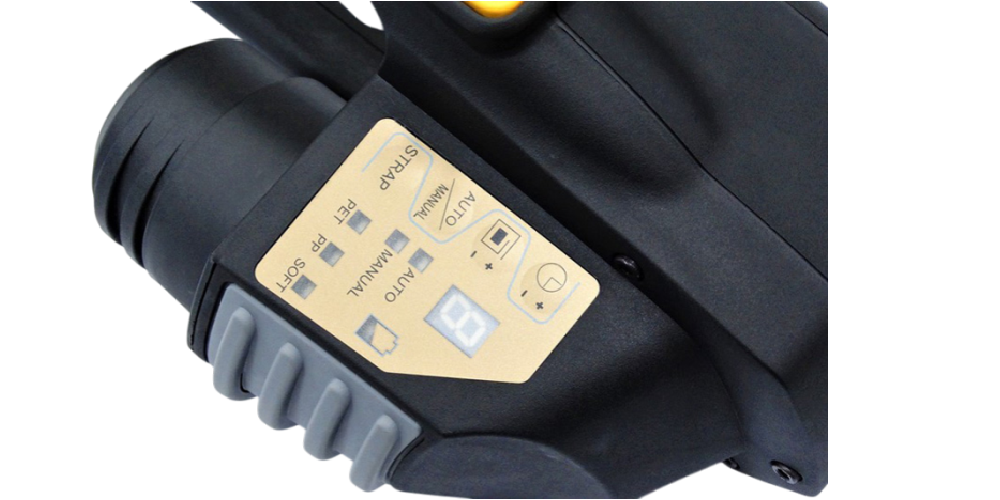

- Pre-programmed touch panel with digital signal to suit different operation needs instinctively.
- Lightest model in same class of tools approx. 3.4kg (7.5lbs incl. battery) relieves operation fatigue.
- Special tool retreating device ensures smooth and easy removal of tool.
- Unique rear-end roller design prevents scratches or worn out damages on strapping objects.
- User self-adjustable strap widths guiders and self-changeable wearing parts.
- Optional hanger reduces operation fatigue.
- Soft mode tension available for slow and low tension on strapping light or fragile objects.
Safety
- Single-handed operation conforms to CE safety directive and meets RoHS requirements.
- Li-Ion battery complies with UN38.3 safety requirements.
Technical Specifications
Tools Specification
| Fits Poly-strap | PP & PET |
| Strap Width | 9 mm (3/8") & 13 mm (1/2") |
| Strap Thickness | 0.50 mm ~ 0.85 mm |
| Tension Range | 15~120 kgs (33~264 lbs) |
| Sealing Efficiency | 85 ±5% |
