Product Overview
WERDEN WD-350X
Film width : 350 mm (Max)
Bag width : 160 mm (Max)

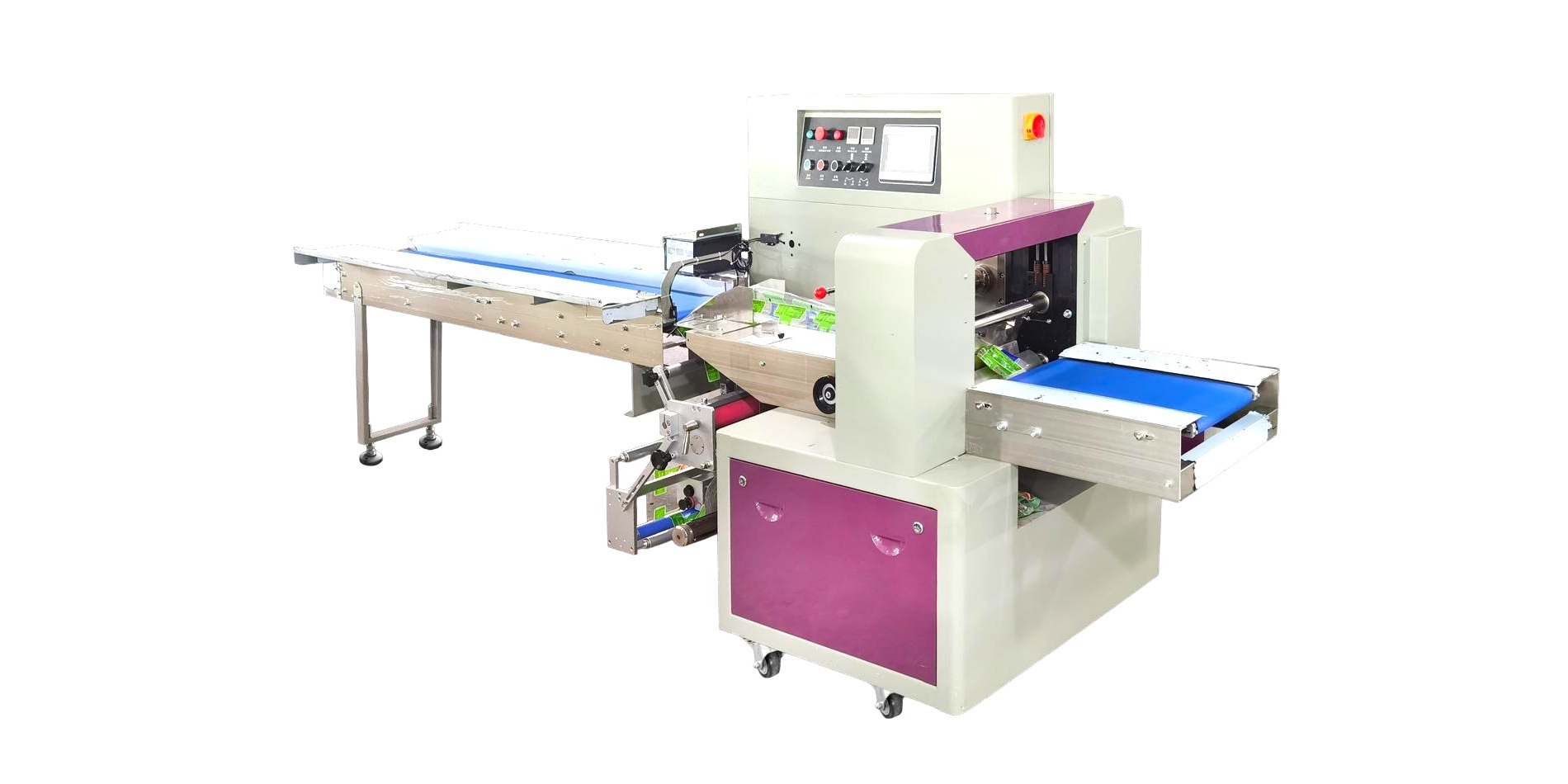

Horizontal Pillow Type Flow Wrapper WD-350X
Horizontal Pillow Type Flow Wrapper WD-350X is a high-speed packaging machine used to wrap products in a continuous flow of film with the film feeding from the bottom of the machine. The product is placed on top of the film rather than the film being wrapped over the top. As the product moves forward, the film wraps around it and is sealed, creating a "pillow pack" like in a traditional flow wrapper, but with better handling of delicate or challenging items.
This type of machine is designed for products that are fragile, irregularly shaped, or difficult to handle, ensuring that the product is not damaged during the wrapping process.
Details
Key Features
• No product no sealing for film saving
• Adjustable bag size former
• Digital temperature control
• Programmable logic control
• Self-diagnostic capable
• This machine is using 3 servo motor for more accurate and consistent sealing.
Technical Specifications
Specification
| Film Width | Max. 350 mm |
| Film Roll OD | Max. 320 mm |
| Product Height | Max. 50 mm |
| Bag Width | Max. 160 mm | Min. 110 mm |
| Bag Length | Min. 90 mm |
| Speed | 40 ~ 120 Bags/ minute |
| Machine Weight | 430 Kg |
| Machine Dimension (LxWxH) | 4020 mm L x 720 mm W x 1320 mm H |
| Power Source | 220V, 50Hz, 1Ph, 5Kw |
