Product Overview

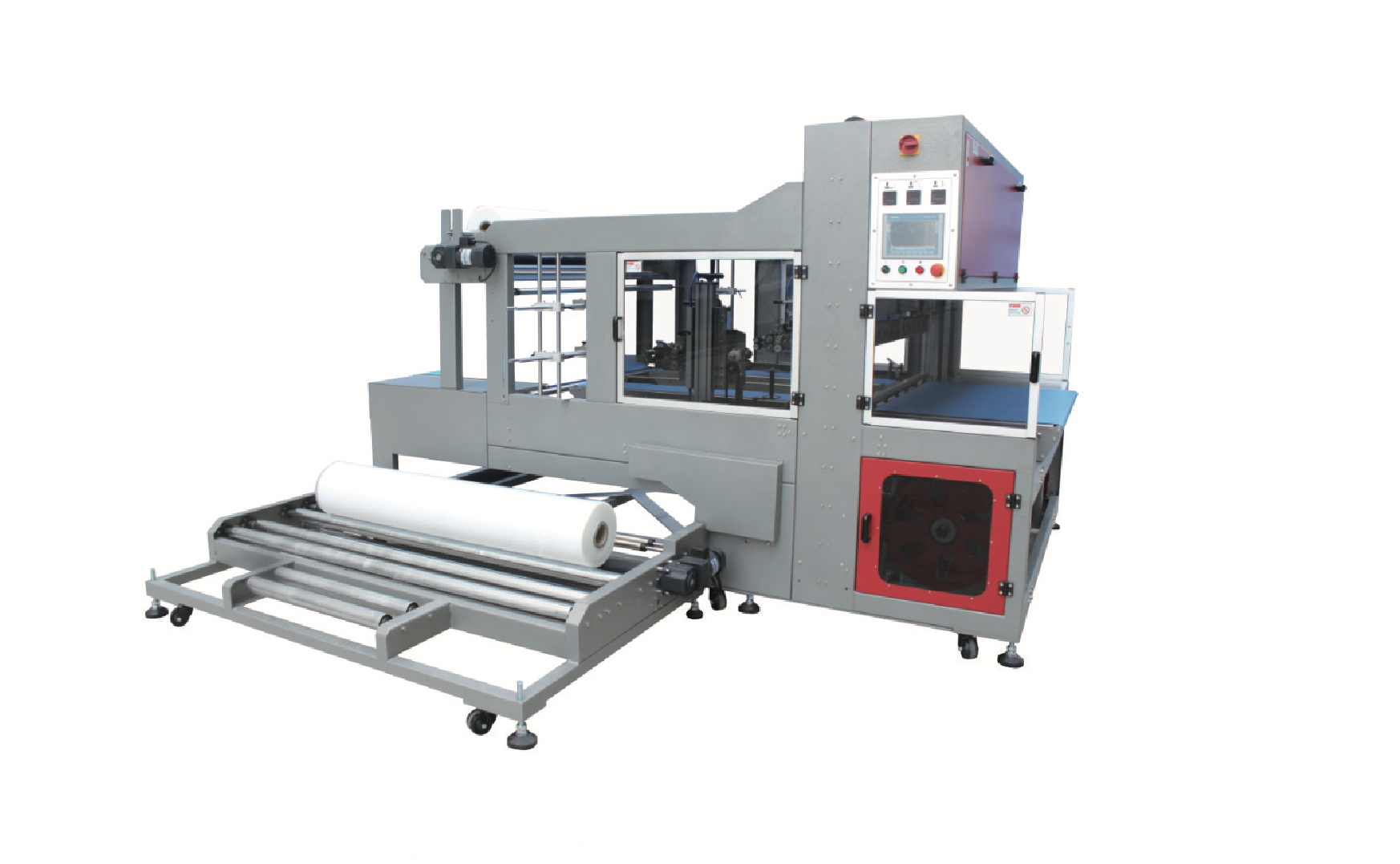

The WERDEN WD-450L-CC Fully Automatic L-Sealer is designed to automate the shrink-wrapping process for a wide range of products and packaging applications. It combines automatic product feeding, film wrapping, and L-shaped sealing into a continuous packaging process, helping improve productivity and achieve consistent package presentation.
The machine features a 550 × 450 mm sealing blade and can handle packages up to 120 mm in height, with maximum packaging dimensions based on the product's length, width, and height. With a packaging speed of approximately 15–30 packages per minute, the WD-450L-CC is suitable for medium to high-volume production environments.
A key feature of this model is its integrated closing conveyor, which is designed to handle smaller product profiles with a minimum product length of approximately 50 mm. This helps maintain smooth product transfer and reliable sealing even when packaging smaller items.
The WD-450L-CC supports POF, PVC, and PE shrink films, providing flexibility for different products and packaging requirements.
Bahasa Indonesia
Mesin L-Sealer Otomatis Penuh (Fully Automatic L-Sealer) WERDEN WD-450L-CC dirancang untuk mengotomatiskan proses pengemasan plastik susut (shrink-wrap) pada berbagai macam produk dan aplikasi pengemasan. Mesin ini menggabungkan pengumpanan produk otomatis, pembungkusan plastik, dan penyegelan berbentuk L ke dalam satu proses pengemasan yang berkelanjutan, membantu meningkatkan produktivitas serta menghasilkan tampilan kemasan yang konsisten.
Mesin ini dilengkapi dengan pisau penyegel (sealing blade) berukuran 550 × 450 mm dan mampu menangani kemasan dengan tinggi hingga 120 mm, dengan dimensi kemasan maksimal berdasarkan panjang, lebar, dan tinggi produk. Dengan kecepatan pengemasan sekitar 15–30 kemasan per menit, WD-450L-CC sangat cocok untuk lingkungan produksi bervolume menengah hingga tinggi.
Fitur utama dari model ini adalah konveyor penutup terintegrasi (integrated closing conveyor), yang dirancang untuk menangani profil produk yang lebih kecil dengan panjang produk minimum sekitar 50 mm. Hal ini membantu menjaga kelancaran perpindahan produk dan penyegelan yang andal bahkan saat mengemas barang berukuran kecil.
WD-450L-CC mendukung plastik susut (shrink film) jenis POF, PVC, dan PE, memberikan fleksibilitas untuk berbagai produk dan kebutuhan pengemasan.
Key Features
- Fully automatic L-sealing and shrink film wrapping
- Integrated closing conveyor for small products
- Suitable for medium to high-volume packaging
- Packaging speed of approximately 15–30 packages/minute
- 550 × 450 mm sealing blade
- Maximum packaging height of 120 mm
- Supports POF, PVC, and PE shrink film
- 330 mm conveyor width
- 220V, 1.5 kW, single-phase power supply
- Designed for consistent and professional shrink-wrapped packaging
Fitur (Bahasa Indonesia)
- Penyegelan tipe-L dan pembungkusan plastik shrink sepenuhnya otomatis
- Konveyor penutup terintegrasi (closing conveyor) untuk produk berukuran kecil
- Cocok untuk pengemasan bervolume menengah hingga tinggi
- Kecepatan pengemasan sekitar 15–30 kemasan/menit
- Pisau penyegel (sealing blade) berukuran 550 × 450 mm
- Tinggi kemasan maksimal 120 mm
- Mendukung plastik shrink POF, PVC, dan PE
- Lebar konveyor 330 mm
- Catu daya 220V, 1,5 kW, 1 fasa
- Dirancang untuk pengemasan shrink-wrap yang konsisten dan profesional
Technical Specifications
Machine Specification
| Max. Packaging Height | < 120mm |
| Max. Packaging L+H (H | < 500mm |
| Max. Packaging W+H (H | < 400mm |
| Sealing Blade Size | 550mm (L) x 450mm (W) |
| Belt Width Close Connection | 50mm |
| Packaging Speed | 15 ~ 30 pkgs / Min |
| Conveyor Width | 330mm |
| Machine Weight | 300Kg |
| Machine Dimension | 1650mm x 800mm x 1450mm |
| Supported Film | POF / PVC / PE |
| Air Pressure | 6 Bar / 80 Psi |
| Power Source | 220V, 1.5Kw, 50Hz, 1Ph |
Applications
The WD-450L-CC is suitable for packaging automotive spare parts, e-commerce products, consumer goods, food products, and other small to medium-sized items that require individual shrink wrapping.
Aplikasi (Bahasa Indonesia)
WERDEN WD-450L-CC sangat cocok untuk mengemas suku cadang otomotif, produk e-commerce, barang konsumsi (consumer goods), produk makanan, dan barang berukuran kecil hingga sedang lainnya yang memerlukan pengemasan shrink wrap satuan.
