Product Overview

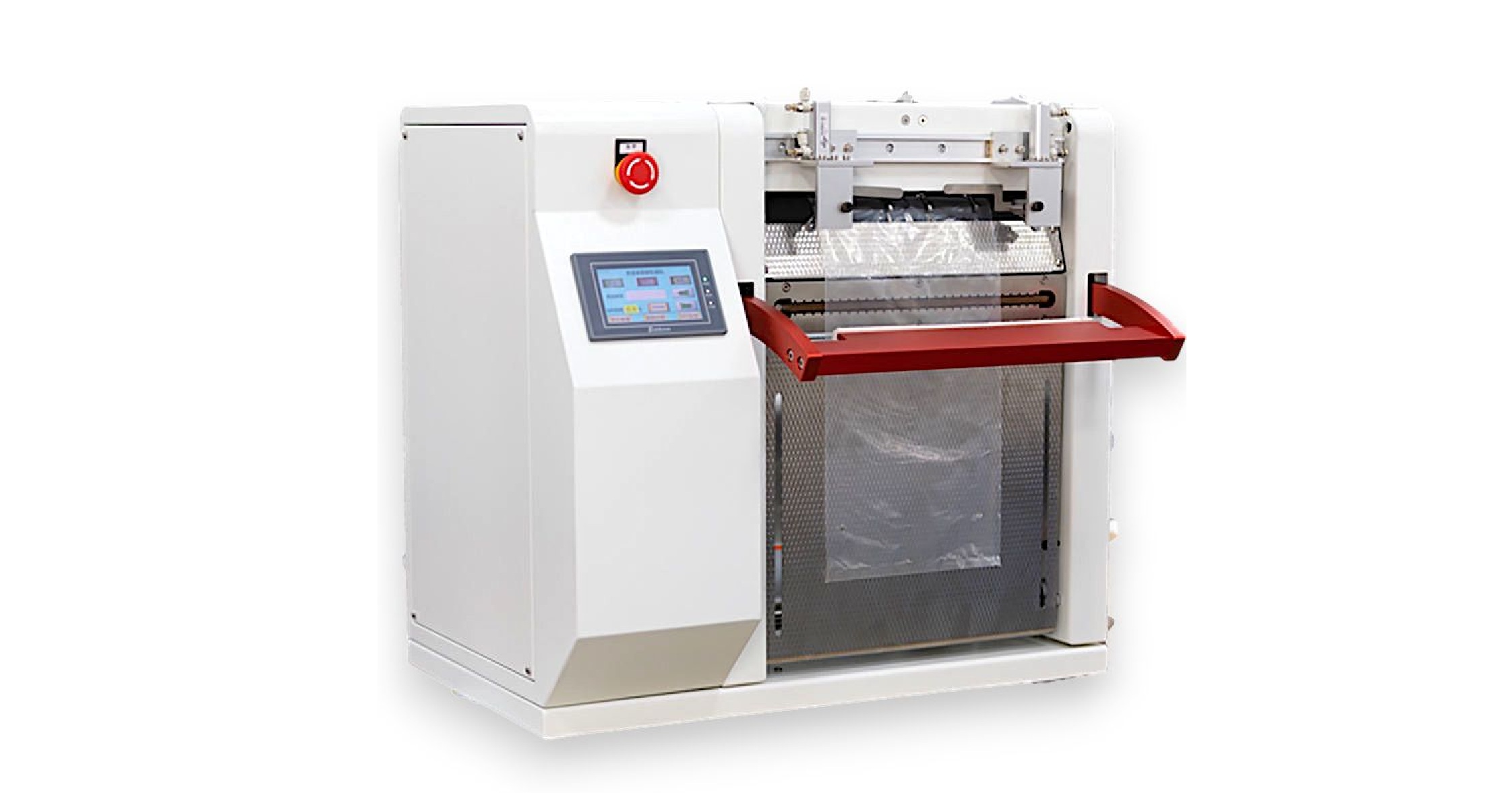

Automatic Packing Machine WAP-100S
WERDEN Automatic Packing Machine, simple and easy-touse, ultimate solution for single-manned collaborative packaging system specially designed to assist manual packaging, reduce manual work procedures, and reduce manual work intensity. With a friendly interface and only few steps for parameter setting, the machine can be put into production quickly.
This machine is particularly suitable for packing bundle items with multiple items and varying sizes, where horizontal pillow type flow wrappers face challenges. Unlike flow wrappers with multiple connected conveyors that create gaps where products can drop, this machine eliminates product loss risk through direct manual placement into pre-opened bags, ensuring secure posiXoning of bundle items.
Ideal choice for electronics manufacturers, component distributors, and e-commerce businesses seeking to streamline the packaging operations.
Details
Technical Specifications
Specification
| Bag Width | Min. 100mm / Max. 260mm |
| Bag Length | Min. 100mm / Max. 500mm |
| Film Width | Max. 260mm |
| Film OD | Max. 300mm |
| Packing Speed | 13~20 bags/min |
| Machine Weight | 80 kg |
| Machine Dimensions | (L)700mm × (W)660mm × (H)990mm |
| Power Source | 220V, 50Hz, 1Ph, 1kW |
| Air Pressure | 0.4MPa, 0.05m³/min |
| Display | LCD with easy-to-navigate menu |
| NOTE* | Air compressor not included |
